32740 Metric Thickness spacers

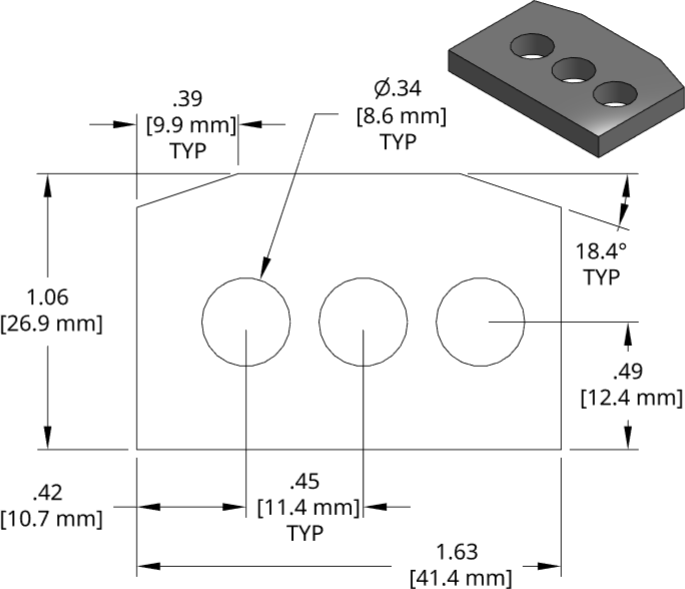

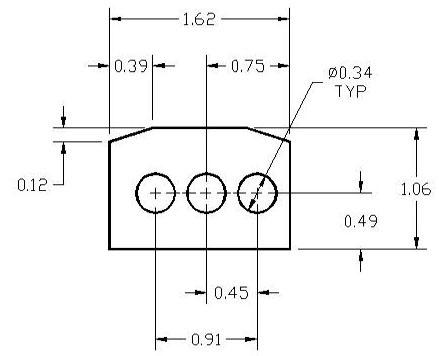

32740 Metric Thickness spacer Drawing
View PDF Catalog Page

Part Number	Thickness
32740-05	0.50mm
32740-10	1.00mm
32740-15	1.50mm
32740-20	2.00mm
32740-25	2.50mm
32740-30	3.00mm
32740-35	3.50mm
32740-40	4.00mm
32740-45	4.50mm
32740-50	5.00mm
32740-55	5.50mm
32740-60	6.00mm
32740-65	6.50mm
32740-70	7.00mm
32740-75	7.50mm
32740-80	8.00mm
