CSS 48 Shims

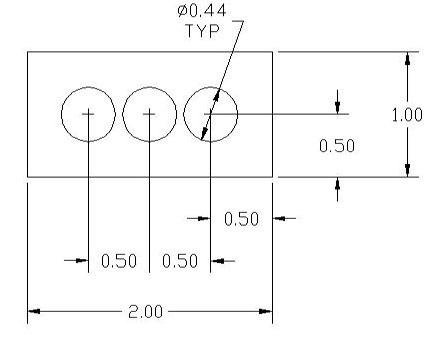

CSS 48 Shim Drawing
View PDF Catalog Page

CSS 48 Series Individual Shims

Part Number	Thickness	DSC Part No's
CSS 48-3	0.015 inch	DSCH088-E015
CSS 48-2	0.031 inch	DSCH088-E032
CSS 48-1	0.062 inch	DSCH088-E062

CSS Series Shim Set Stackups

Set Number	Stackup	0.062 inch	0.031 inch	0.015 inch	DSC Set Number
42-530-2650	.150 Inch Set	1	2	2	DSCH088-E155
