DSCH002 Series Shims

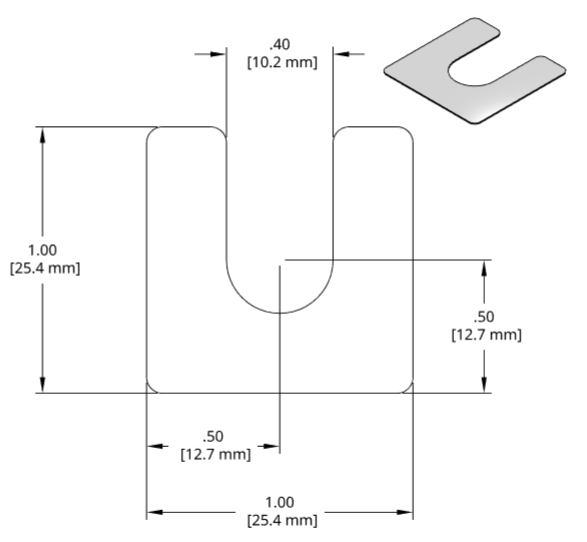

DSCH002 Series Shim Drawing
View PDF Catalog Page

DSCH002 Series Individual Shims

Part Number Thickness Legacy Part No's
DSCH002-M025 0.25mm FSD 34493-54, GSD-B-25
DSCH002-M050 0.50mm FSD 34493-53, GSD-B-50
DSCH002-M100 1.00mm FSD 34493-52, GSD-B-100
DSCH002-M200 2.00mm FSD 34493-51, GSD-B-200
DSCH002-E015 .015 inch FSD 14181-54
DSCH002-E032 .032 inch FSD 14181-52
DSCH002-E062 .062 inch FSD 14181-51

DSCH002 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
DSCH002-M454 4.5mm Set 1 2 1 0
DSCH002-M505 5.0mm Set 1 2 2 0
DSCH002-M506 5.0mm Set 1 2 1 2
DSCH002-M507 5.0mm Set 1 1 3 2
DSCH002-M605 6.0mm Set 2 1 2 0

DSCH002 Inch Shim Set Stackups

Set Number Stackup .062 inch .031 inch
DSCH002-E255 .250 inch Set 3 2
