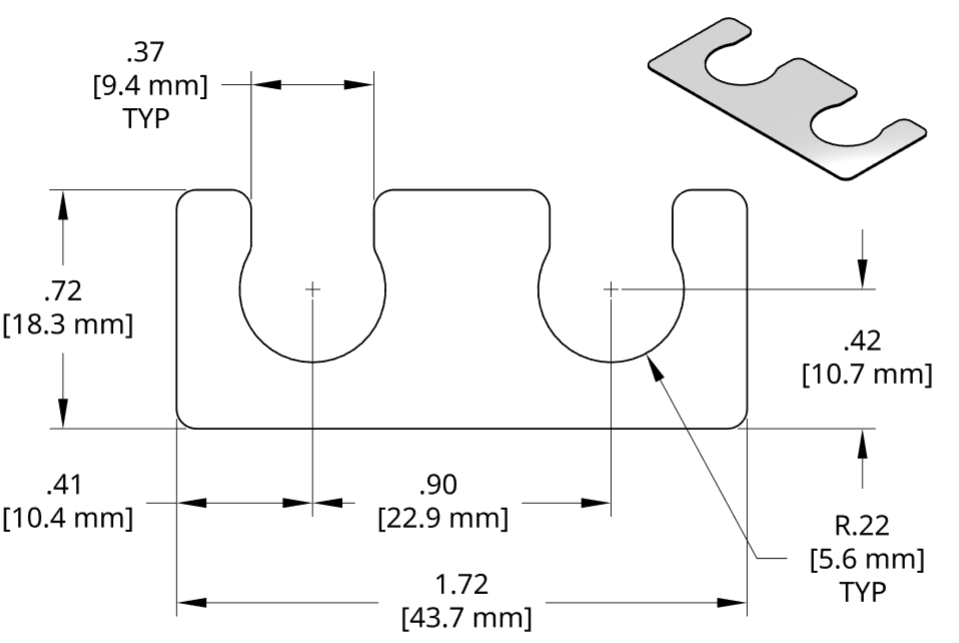

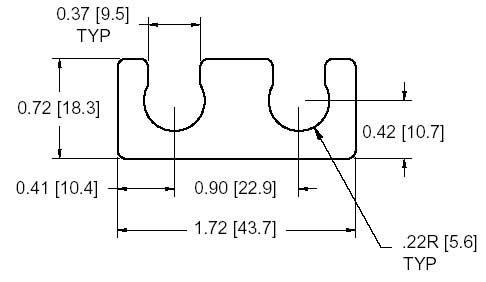

DSCH004 Series Shims
View PDF Catalog Page
DSCH004 Series Individual Shims
| Stock Code | Thickness | Legacy Stock Code | STEP Download |
|---|---|---|---|
| DSCH004-M025 | 0.25mm | FSD 34495-54 | DSCH004-M025.step |
| DSCH004-M050 | 0.50mm | FSD 34495-53 | DSCH004-M050.step |
| DSCH004-M100 | 1.00mm | FSD 34495-52 | DSCH004-M100.step |
| DSCH004-M200 | 2.00mm | FSD 34495-51 | DSCH004-M200.step |
| DSCH004-E015 | .015 inch | FSD 14150-54 | DSCH004-E015.step |
| DSCH004-E032 | .032 inch | FSD 14150-52 | DSCH004-E032.step |
| DSCH004-E062 | .062 inch | FSD 14150-51 | DSCH004-E062.step |
DSCH004 Series Shim Set Stackups
| Set Number | Stackup | 2.00mm | 1.00mm | 0.50mm | 0.25mm |
|---|---|---|---|---|---|
| DSCH004-M305 | 3.0mm Set | 0 | 2 | 1 | 2 |
| DSCH004-M454 | 4.5mm Set | 1 | 2 | 1 | 0 |
| DSCH004-M505 | 5.0mm Set | 1 | 2 | 2 | 0 |
| DSCH004-M506 | 5.0mm Set | 1 | 2 | 1 | 2 |
| DSCH004-M507 | 5.0mm Set | 1 | 1 | 3 | 2 |
| DSCH004-M605 | 6.0mm Set | 2 | 1 | 2 | 0 |
| DSCH004-M706 | 7.0mm Set | 2 | 2 | 2 | 0 |
DSCH004 Inch Shim Set Stackups
| Set Number | Stackup | .062 inch | .031 inch |
|---|---|---|---|
| DSCH004-E255 | .250 inch Set | 3 | 2 |
