DSCH007 Series Shims

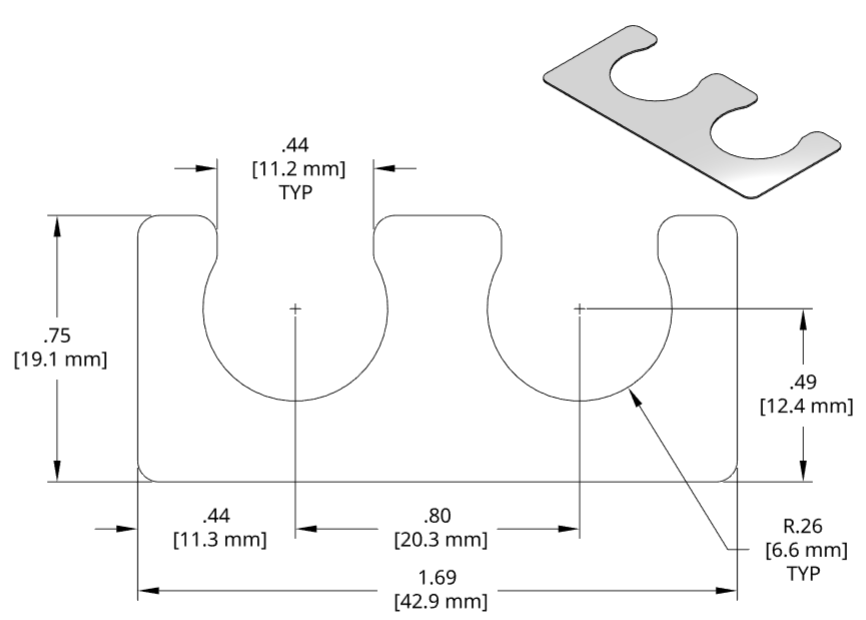

DSCH007 Series Shim Drawing
View PDF Catalog Page

DSCH007 Series Individual Shims

Part Number Thickness Legacy Part No's
DSCH007-M025 0.25mm FSD 34498-54
DSCH007-M050 0.50mm FSD 34498-53
DSCH007-M100 1.00mm FSD 34498-52
DSCH007-M200 2.00mm FSD 34498-51
DSCH007-E015 .015 inch FSD 14067-54
DSCH007-E032 .032 inch FSD 14067-52
DSCH007-E062 .062 inch FSD 14067-51

DSCH007 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
DSCH007-M454 4.5mm Set 1 2 1 0
DSCH007-M505 5.0mm Set 1 2 2 0
DSCH007-M506 5.0mm Set 1 2 1 2
DSCH007-M507 5.0mm Set 1 1 3 2
DSCH007-M605 6.0mm Set 2 1 2 0

DSCH007 Inch Shim Set Stackups

Set Number Stackup .062 inch .031 inch
DSCH007-E255 .250 inch Set 3 2
