DSCH009 Series Shims

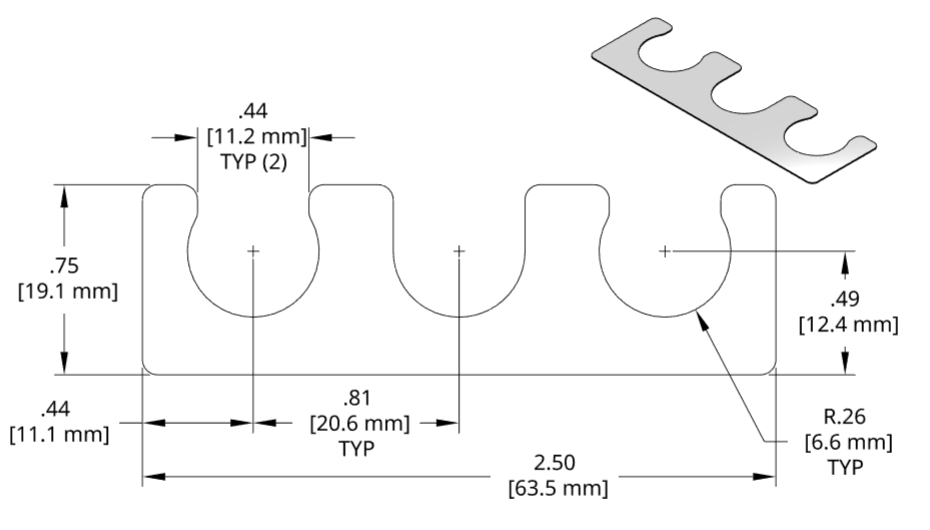

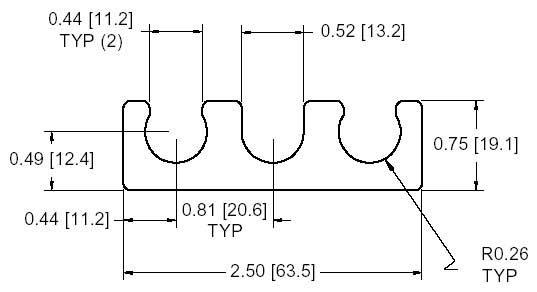

DSCH009 Series Shim Drawing
View PDF Catalog Page

DSCH009 Series Individual Shims

Part Number Thickness Legacy Part No's
DSCH009-M025 0.25mm FSD 34500-54
DSCH009-M050 0.50mm FSD 34500-53
DSCH009-M100 1.00mm FSD 34500-52
DSCH009-M200 2.00mm FSD 34500-51
DSCH009-E015 .015 inch FSD 14056-54
DSCH009-E032 .032 inch FSD 14056-52
DSCH009-E062 .062 inch FSD 14056-51

DSCH009 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
DSCH009-M454 4.5mm Set 1 2 1 0
DSCH009-M505 5.0mm Set 1 2 2 0
DSCH009-M506 5.0mm Set 1 2 1 2
DSCH009-M507 5.0mm Set 1 1 3 2
DSCH009-M605 6.0mm Set 2 1 2 0

DSCH009 Inch Shim Set Stackups

Set Number Stackup .062 inch .031 inch
DSCH009-E255 .250 inch Set 3 2
