DSCH012 Series Shims

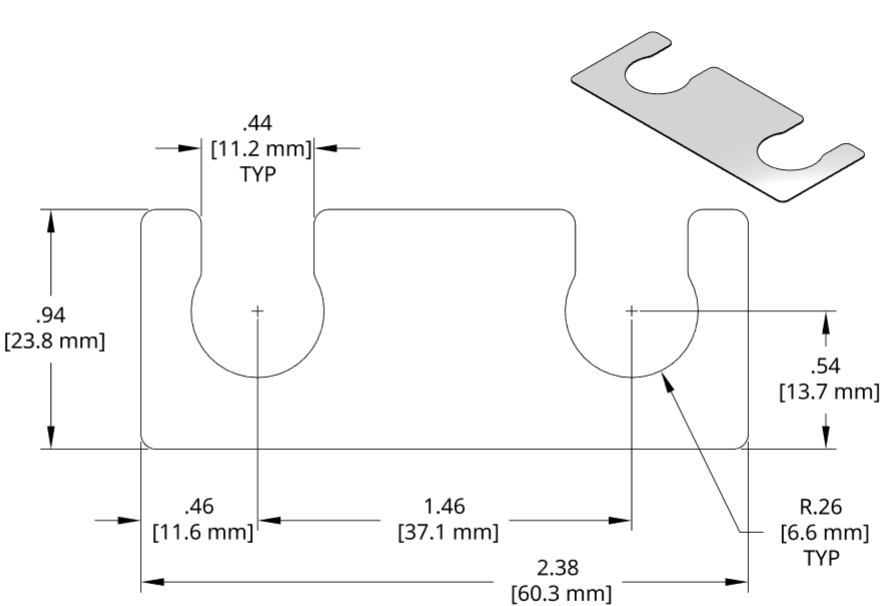

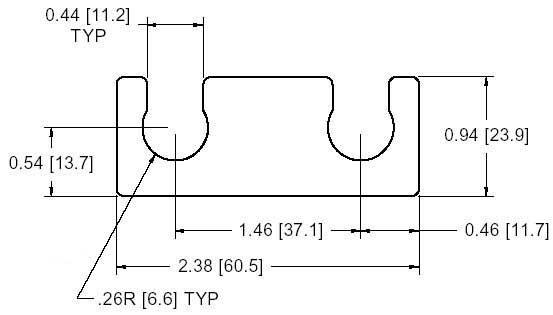

DSCH012 Series Shim Drawing
View PDF Catalog Page

DSCH012 Series Individual Shims

Part Number Thickness Legacy Part No's
DSCH012-M025 0.25mm FSD 34503-54
DSCH012-M050 0.50mm FSD 34503-53
DSCH012-M100 1.00mm FSD 34503-52
DSCH012-M200 2.00mm FSD 34503-51
DSCH012-E015 .015 inch FSD 14052-54
DSCH012-E032 .032 inch FSD 14052-52
DSCH012-E062 .062 inch FSD 14052-51

DSCH012 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
DSCH012-M454 4.5mm Set 1 2 1 0
DSCH012-M505 5.0mm Set 1 2 2 0
DSCH012-M506 5.0mm Set 1 2 1 2
DSCH012-M507 5.0mm Set 1 1 3 2
DSCH012-M605 6.0mm Set 2 1 2 0

DSCH012 Inch Shim Set Stackups

Set Number Stackup .062 inch .031 inch
DSCH012-E255 .250 inch Set 3 2
