DSCH016 Series Shims

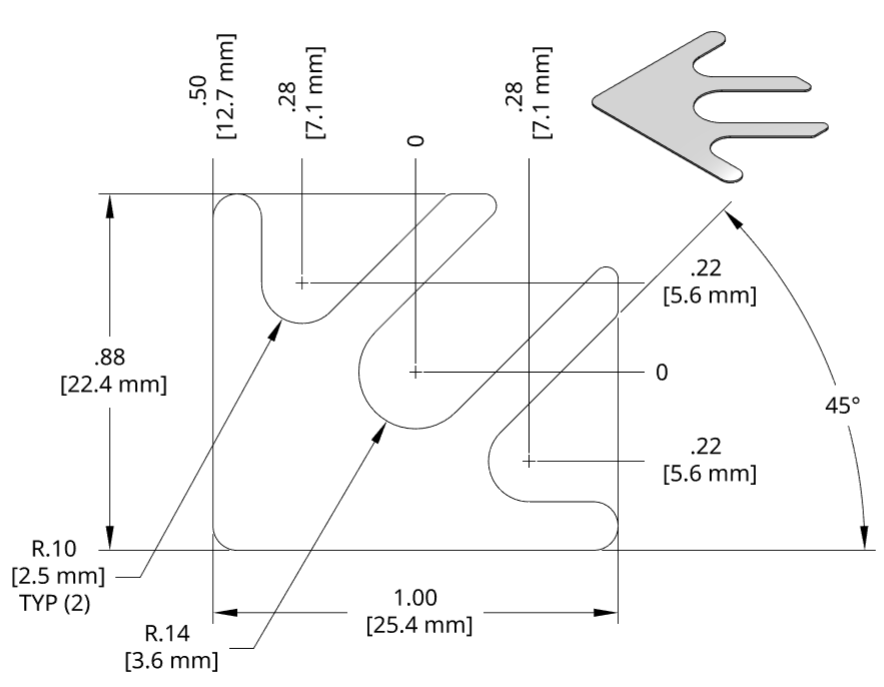

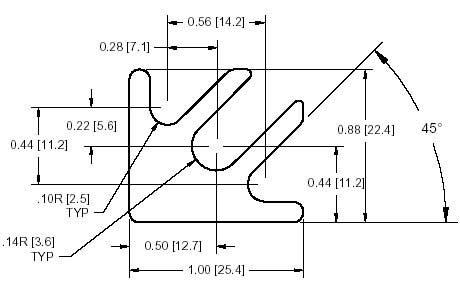

DSCH016 Series Shim Drawing
View PDF Catalog Page

DSCH016 Series Individual Shims

Part Number Thickness Legacy Part No's
DSCH016-M025 0.25mm FSD 34507-54
DSCH016-M050 0.50mm FSD 34507-53
DSCH016-M100 1.00mm FSD 34507-52
DSCH016-M200 2.00mm FSD 34507-51
DSCH016-E015 .015 inch FSD 14190-54
DSCH016-E032 .032 inch FSD 14190-52
DSCH016-E062 .062 inch FSD 14190-51

DSCH016 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
DSCH016-M454 4.5mm Set 1 2 1 0
DSCH016-M505 5.0mm Set 1 2 2 0
DSCH016-M506 5.0mm Set 1 2 1 2
DSCH016-M507 5.0mm Set 1 1 3 2
DSCH016-M605 6.0mm Set 2 1 2 0

DSCH016 Inch Shim Set Stackups

Set Number Stackup .062 inch .031 inch
DSCH016-E255 .250 inch Set 3 2
