DSCH018 Series Shims

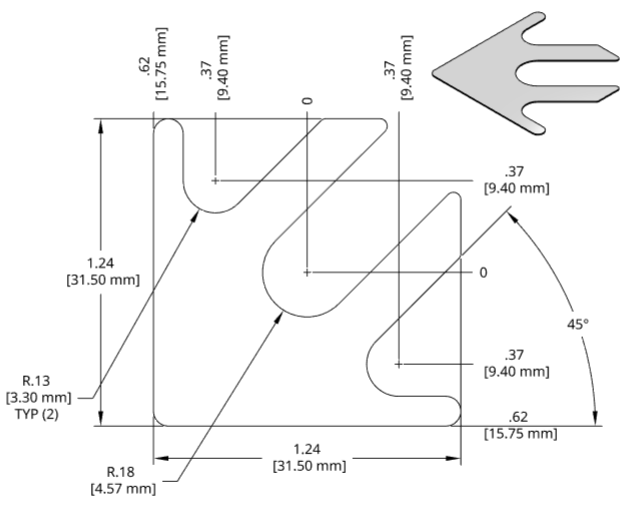

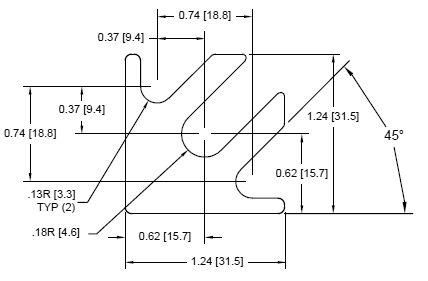

DSCH018 Series Shim Drawing
View PDF Catalog Page

DSCH018 Series Individual Shims

Part Number Thickness Legacy Part No's
DSCH018-M025 0.25mm FSD 34509-54
DSCH018-M050 0.50mm FSD 34509-53
DSCH018-M100 1.00mm FSD 34509-52
DSCH018-M200 2.00mm FSD 34509-51
DSCH018-E015 .015 inch FSD 14109-54
DSCH018-E032 .032 inch FSD 14109-52
DSCH018-E062 .062 inch FSD 14109-51

DSCH018 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
DSCH018-M454 4.5mm Set 1 2 1 0
DSCH018-M505 5.0mm Set 1 2 2 0
DSCH018-M506 5.0mm Set 1 2 1 2
DSCH018-M507 5.0mm Set 1 1 3 2
DSCH018-M605 6.0mm Set 2 1 2 0

DSCH018 Inch Shim Set Stackups

Set Number Stackup .062 inch .031 inch
DSCH018-E255 .250 inch Set 3 2
