DSCH020 Series Shims

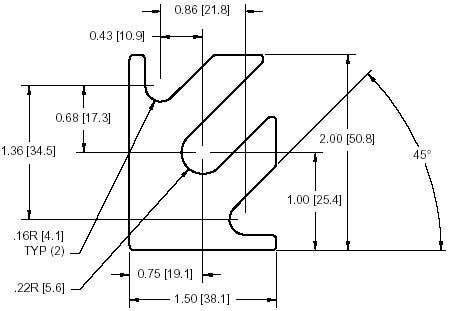

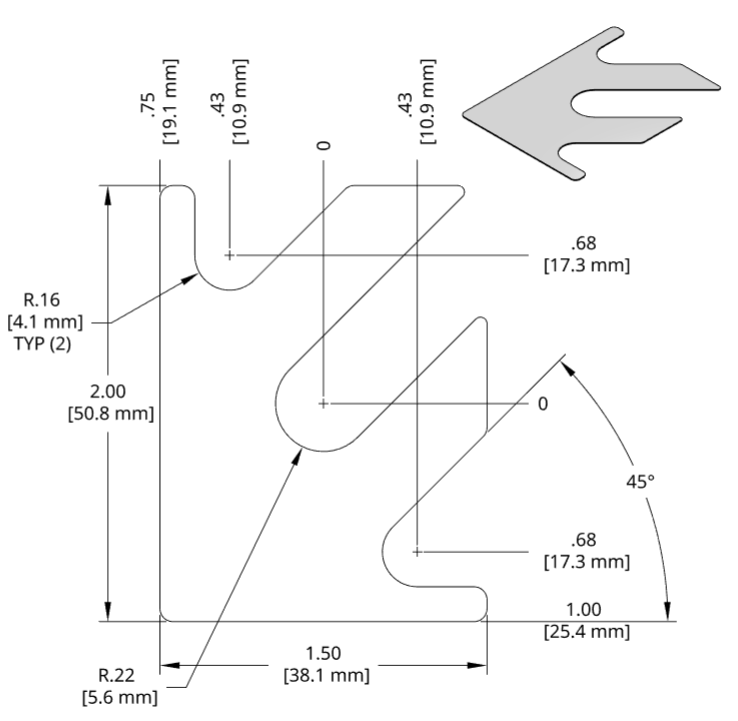

DSCH020 Series Shim Drawing
View PDF Catalog Page

DSCH020 Series Individual Shims

Part Number Thickness Legacy Part No's
DSCH020-M025 0.25mm FSD 34511-54
DSCH020-M050 0.50mm FSD 34511-53
DSCH020-M100 1.00mm FSD 34511-52
DSCH020-M200 2.00mm FSD 34511-51
DSCH020-E015 .015 inch FSD 14076-54
DSCH020-E032 .032 inch FSD 14076-52
DSCH020-E062 .062 inch FSD 14076-51

DSCH020 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
DSCH020-M454 4.5mm Set 1 2 1 0
DSCH020-M505 5.0mm Set 1 2 2 0
DSCH020-M506 5.0mm Set 1 2 1 2
DSCH020-M507 5.0mm Set 1 1 3 2
DSCH020-M605 6.0mm Set 2 1 2 0

DSCH020 Inch Shim Set Stackups

Set Number Stackup .062 inch .031 inch
DSCH020-E255 .250 inch Set 3 2
