DSCH067 Series Shims

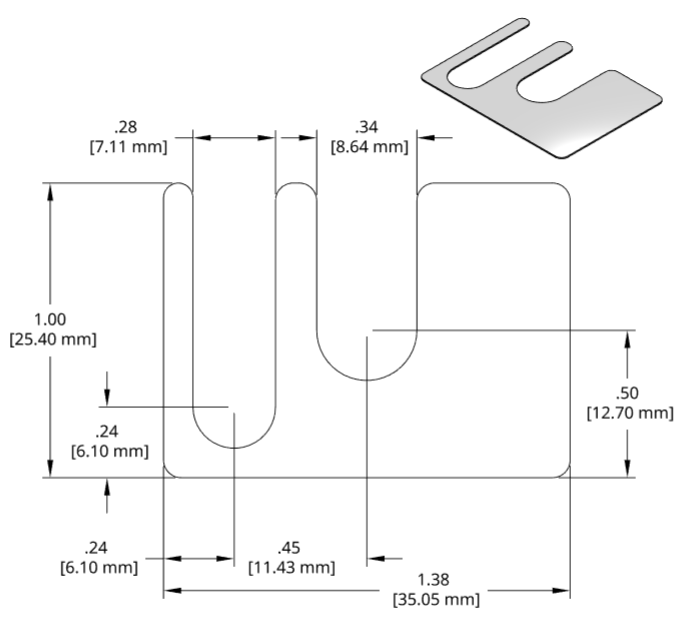

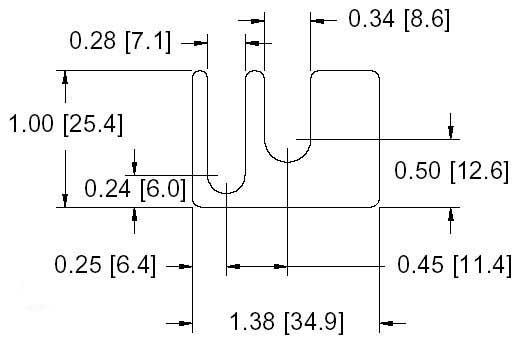

DSCH067 Series Shim Drawing
View PDF Catalog Page

DSCH067 Series Individual Shims

Part Number Thickness Legacy Part No's
DSCH067-M025 0.25mm M FS 15-EEEE
DSCH067-M050 0.50mm M FS 15-EEE
DSCH067-M100 1.00mm M FS 15-EE
DSCH067-M200 2.00mm M FS 15-E
DSCH067-E015 .015 inch FS 15-EEE
DSCH067-E032 .032 inch FS 15-EE
DSCH067-E062 .062 inch FS 15-E

DSCH067 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
DSCH067-M454 4.5mm Set 1 2 1 0
DSCH067-M505 5.0mm Set 1 2 2 0
DSCH067-M506 5.0mm Set 1 2 1 2
DSCH067-M507 5.0mm Set 1 1 3 2
DSCH067-M605 6.0mm Set 2 1 2 0

DSCH067 Inch Shim Set Stackups

Set Number Stackup .062 inch .031 inch
DSCH067-E255 .250 inch Set 3 2
