DSCH068 Series Shims

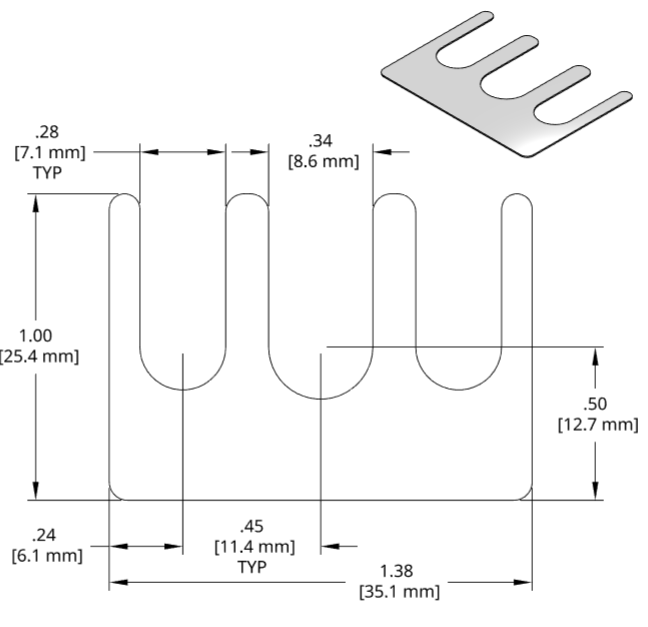

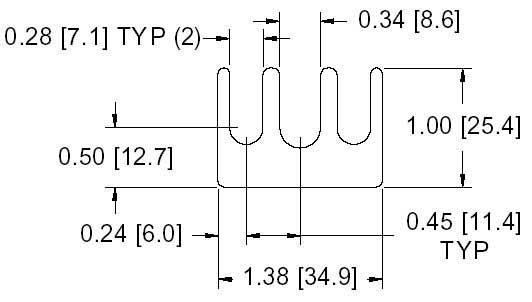

DSCH068 Series Shim Drawing


View PDF Catalog Page

DSCH068 Series Individual Shims

Stock Code Thickness Legacy Stock Codes STEP Download
DSCH068-M025 0.25mm M FS 15-FFFF DSCH068-M025.step
DSCH068-M050 0.50mm M FS 15-FFF DSCH068-M050.step
DSCH068-M100 1.00mm M FS 15-FF DSCH068-M100.step
DSCH068-M200 2.00mm M FS 15-F DSCH068-M200.step
DSCH068-E015 .015 inch FS 15-FFF DSCH068-E015.step
DSCH068-E032 .032 inch FS 15-FF DSCH068-E032.step
DSCH068-E062 .062 FS 15-F DSCH068-E062.step

DSCH068 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
DSCH068-M305 3.0mm Set 0 2 1 2
DSCH068-M454 4.5mm Set 1 2 1 0
DSCH068-M505 5.0mm Set 1 2 2 0
DSCH068-M506 5.0mm Set 1 2 1 2
DSCH068-M507 5.0mm Set 1 1 3 2
DSCH068-M605 6.0mm Set 2 1 2 0
DSCH068-M706 7.0mm Set 2 2 2 0

DSCH068 Inch Shim Set Stackups

Set Number Stackup .062 inch .031 inch
DSCH068-E255 .250 inch Set 3 2
