DSCH070 Series Shims

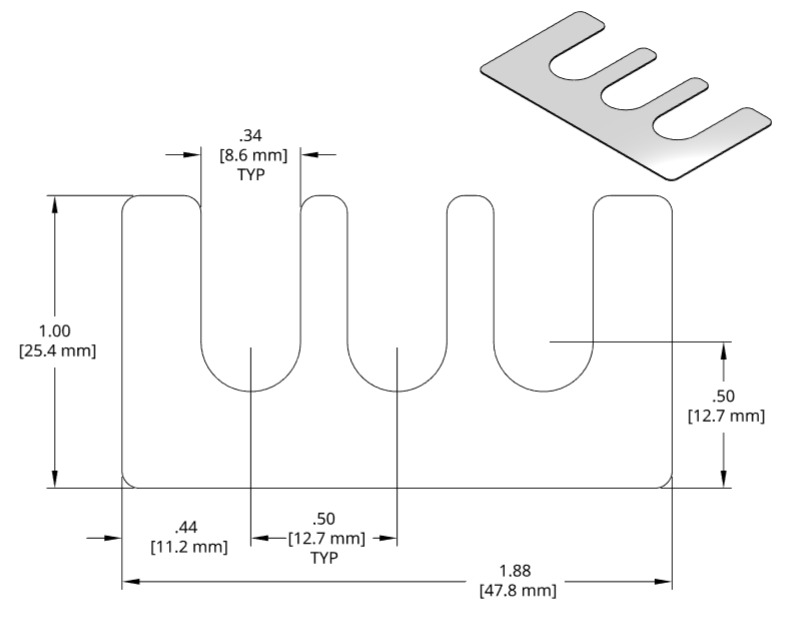

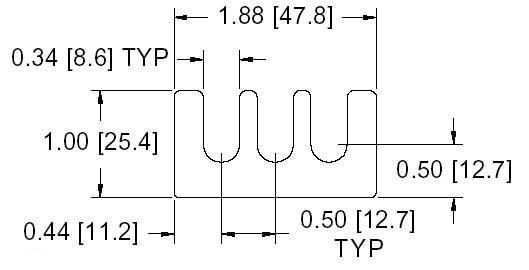

DSCH070 Series Shim Drawing
View PDF Catalog Page

DSCH070 Series Individual Shims

Part Number Thickness Legacy Part No's
DSCH070-M025 0.25mm M FS 15-HHHH
DSCH070-M050 0.50mm M FS 15-HHH
DSCH070-M100 1.00mm M FS 15-HH
DSCH070-M200 2.00mm M FS 15-H
DSCH070-E015 .015 inch FS 15-HHH
DSCH070-E032 .032 inch FS 15-HH
DSCH070-E062 .062 inch FS 15-H

DSCH070 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
DSCH070-M454 4.5mm Set 1 2 1 0
DSCH070-M505 5.0mm Set 1 2 2 0
DSCH070-M506 5.0mm Set 1 2 1 2
DSCH070-M507 5.0mm Set 1 1 3 2
DSCH070-M605 6.0mm Set 2 1 2 0

DSCH070 Inch Shim Set Stackups

Set Number Stackup .062 inch .031 inch
DSCH070-E255 .250 inch Set 3 2
