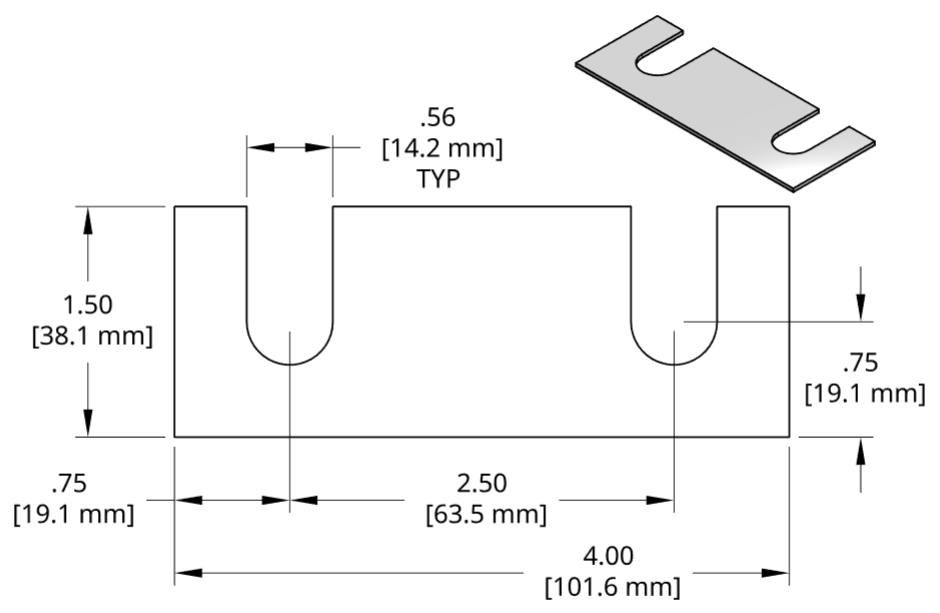

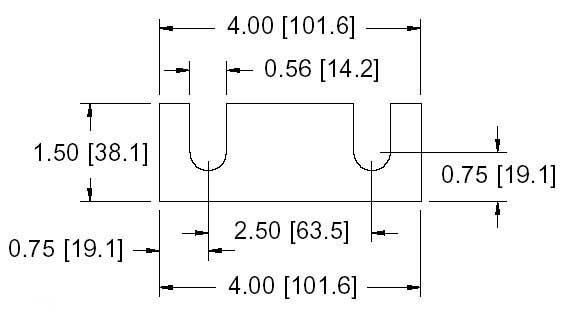

DSCH107 Series Shims
View PDF Catalog Page
DSCH107 Series Individual Shims
| Stock Code | Thickness | STEP Download |
|---|---|---|
| DSCH107-M025 | 0.25mm | DSCH107-M025.step |
| DSCH107-M050 | 0.50mm | DSCH107-M050.step |
| DSCH107-M100 | 1.00mm | DSCH107-M100.step |
| DSCH107-M200 | 2.00mm | DSCH107-M200.step |
| DSCH107-E015 | .015 inch | DSCH107-E015.step |
| DSCH107-E032 | .032 inch | DSCH107-E032.step |
| DSCH107-E059 | .059 inch | DSCH107-E059.step |
| DSCH107-E062 | .062 inch | DSCH107-E062.step |
DSCH107 Series Shim Set Stackups
| Set Number | Stackup | 2.00mm | 1.00mm | 0.50mm | 0.25mm |
|---|---|---|---|---|---|
| DSCH107-M305 | 3.0mm Set | 0 | 2 | 1 | 2 |
| DSCH107-M454 | 4.5mm Set | 1 | 2 | 1 | 0 |
| DSCH107-M505 | 5.0mm Set | 1 | 2 | 2 | 0 |
| DSCH107-M506 | 5.0mm Set | 1 | 2 | 1 | 2 |
| DSCH107-M507 | 5.0mm Set | 1 | 1 | 3 | 2 |
| DSCH107-M605 | 6.0mm Set | 2 | 1 | 2 | 0 |
| DSCH107-M706 | 7.0mm Set | 2 | 2 | 2 | 0 |
DSCH107 Inch Shim Set Stackups
| Set Number | Stackup | .062 inch | .059 inch | .031 inch | Legacy Part No |
|---|---|---|---|---|---|
| DSCH107-E244 | .236 inch set | 0 | 4 | 0 | D113063 |
| DSCH107-E255 | .250 inch Set | 3 | 0 | 2 |
