DSCP011 Series Spacers

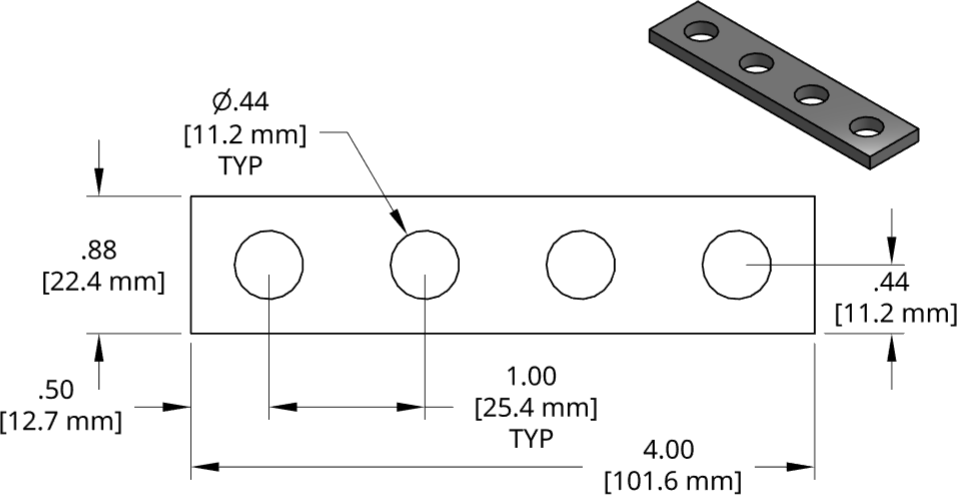

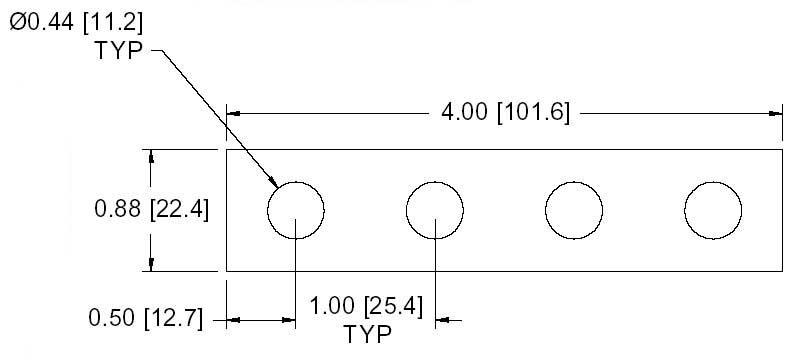

DSCP011 Series Shim Drawing


View PDF Catalog Page

DSCP011 Series Individual Spacers

Part Number Thickness Other Part Numbers
DSCP011-M200 2.00mm FSD 40228-51
DSCP011-M225 2.25mm FSD 40228-52
DSCP011-M250 2.50mm FSD 40228-53
DSCP011-M275 2.75mm FSD 40228-54
DSCP011-M300 3.00mm FSD 40228-55
DSCP011-M325 3.25mm FSD 40228-56
DSCP011-M350 3.50mm FSD 40228-57
DSCP011-M375 3.75mm FSD 40228-58
DSCP011-M400 4.00mm FSD 40228-59
DSCP011-M425 4.25mm FSD 40228-60
DSCP011-M450 4.50mm FSD 40228-61
DSCP011-M475 4.75mm FSD 40228-62
DSCP011-M500 5.00mm FSD 40228-63
DSCP011-M525 5.25mm FSD 40228-64
DSCP011-M550 5.50mm FSD 40228-65
DSCP011-M575 5.75mm FSD 40228-66
DSCP011-M600 6.00mm FSD 40228-67
