DSCP019 Series Spacers

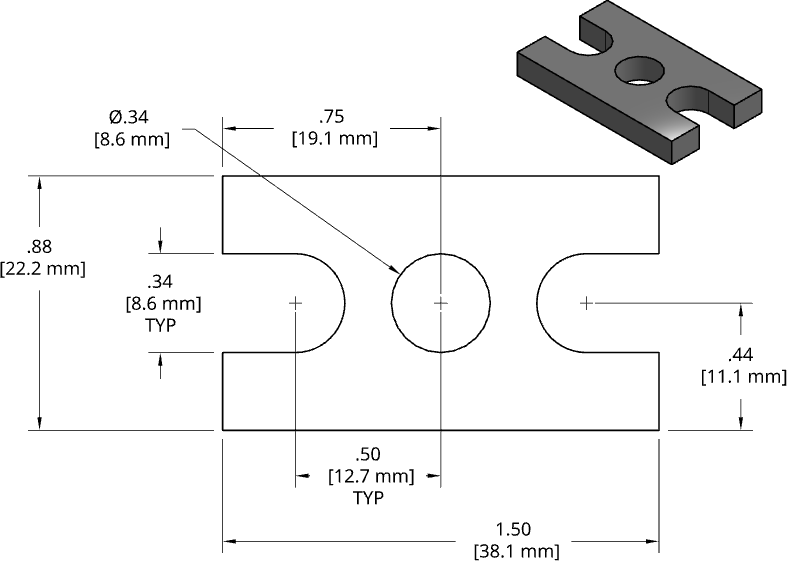

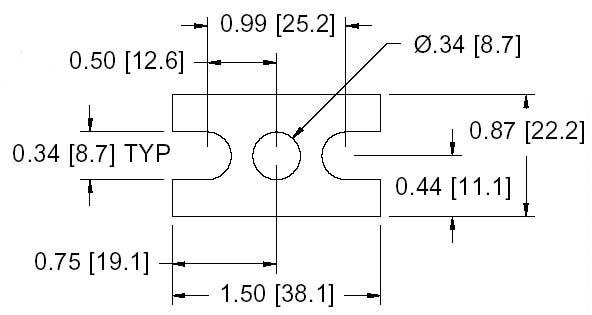

DSCP019 Series Shim Drawing


View PDF Catalog Page

DSCP019 Series Individual Spacers

Stock Code Thickness Other Part Numbers STEP Download
DSCP019-M050 0.50mm FSD 40775-45 DSCP019-M050.step
DSCP019-M100 1.00mm FSD 40775-47 DSCP019-M100.step
DSCP019-M200 2.00mm FSD 40775-51 DSCP019-M200.step
DSCP019-M225 2.25mm FSD 40775-52 DSCP019-M225.step
DSCP019-M250 2.50mm FSD 40775-53 DSCP019-M250.step
DSCP019-M275 2.75mm FSD 40775-54 DSCP019-M275.step
DSCP019-M300 3.00mm FSD 40775-55 DSCP019-M300.step
DSCP019-M325 3.25mm FSD 40775-56 DSCP019-M325.step
DSCP019-M350 3.50mm FSD 40775-57 DSCP019-M350.step
DSCP019-M375 3.75mm FSD 40775-58 DSCP019-M375.step
DSCP019-M400 4.00mm FSD 40775-59 DSCP019-M400.step
DSCP019-M425 4.25mm FSD 40775-60 DSCP019-M425.step
DSCP019-M450 4.50mm FSD 40775-61 DSCP019-M450.step
DSCP019-M475 4.75mm FSD 40775-62 DSCP019-M475.step
DSCP019-M500 5.00mm FSD 40775-63 DSCP019-M500.step
DSCP019-M525 5.25mm FSD 40775-64 DSCP019-M525.step
DSCP019-M550 5.50mm FSD 40775-65 DSCP019-M550.step
DSCP019-M575 5.75mm FSD 40775-62 DSCP019-M575.step
DSCP019-M600 6.00mm FSD 40775-63 DSCP019-M600.step
