DSCP023 Series Spacers

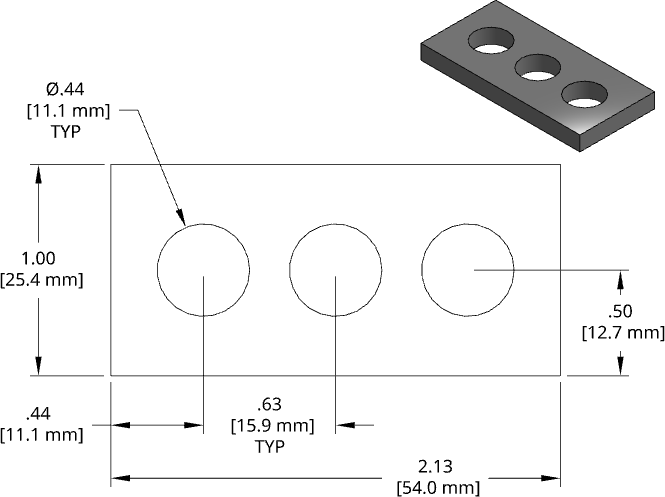

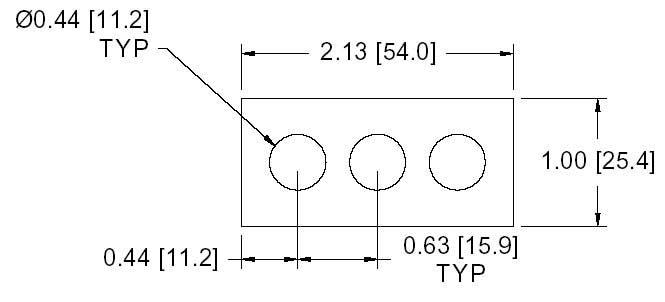

DSCP023 Series Shim Drawing


View PDF Catalog Page

DSCP023 Series Individual Spacers

Part Number Thickness Other Part Numbers
DSCP023-M200 2.00mm FSD 40875-01
DSCP023-M225 2.25mm FSD 40875-02
DSCP023-M250 2.50mm FSD 40875-03
DSCP023-M275 2.75mm FSD 40875-04
DSCP023-M300 3.00mm FSD 40875-05
DSCP023-M325 3.25mm FSD 40875-06
DSCP023-M350 3.50mm FSD 40875-07
DSCP023-M375 3.75mm FSD 40875-08
DSCP023-M400 4.00mm FSD 40875-09
DSCP023-M425 4.25mm FSD 40875-10
DSCP023-M450 4.50mm FSD 40875-11
DSCP023-M475 4.75mm FSD 40875-12
DSCP023-M500 5.00mm FSD 40875-13
DSCP023-M525 5.25mm FSD 40875-14
DSCP023-M550 5.50mm FSD 40875-15
DSCP023-M575 5.75mm FSD 40875-16
DSCP023-M600 6.00mm FSD 40875-17
