DSCP032 Series Spacers

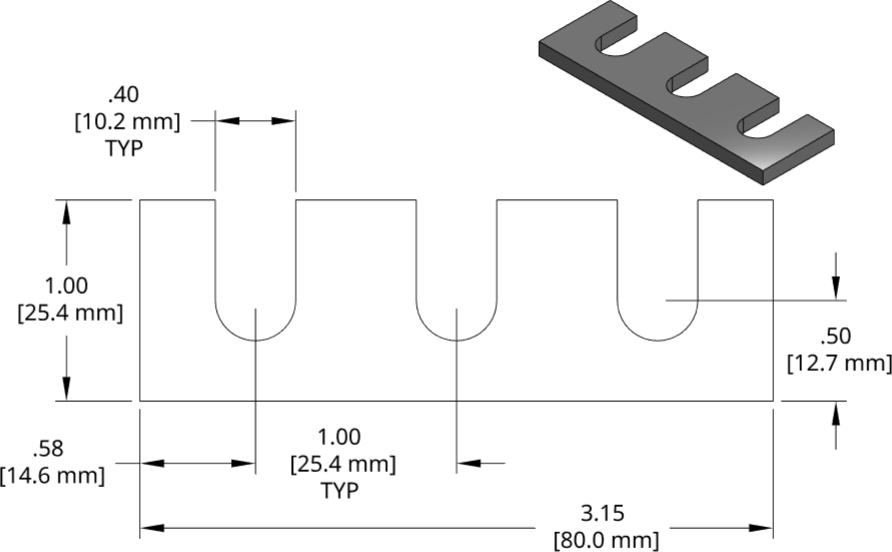

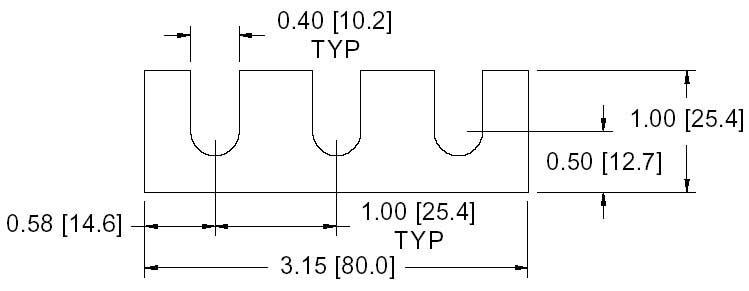

DSCP032 Series Shim Drawing


View PDF Catalog Page

DSCP032 Series Individual Spacers

Part Number Thickness Other Part Numbers STEP Download
DSCP032-M050 0.50mm FS 21-09-0105 DSCP032-M050.step
DSCP032-M100 1.00mm FS 21-09-0110 DSCP032-M100.step
DSCP032-M150 1.50mm FS 21-09-0115 DSCP032-M150.step
DSCP032-M200 2.00mm FS 21-09-0120 DSCP032-M200.step
DSCP032-M450 4.50mm FS 21-09-0145 DSCP032-M450.step
