DSCP035 Series Spacers

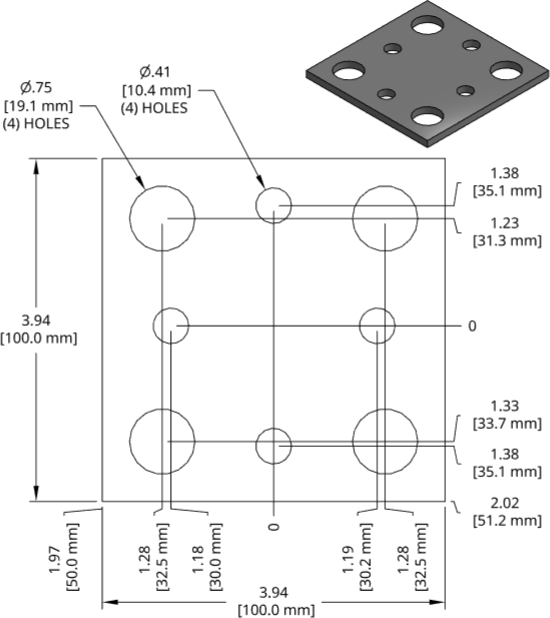

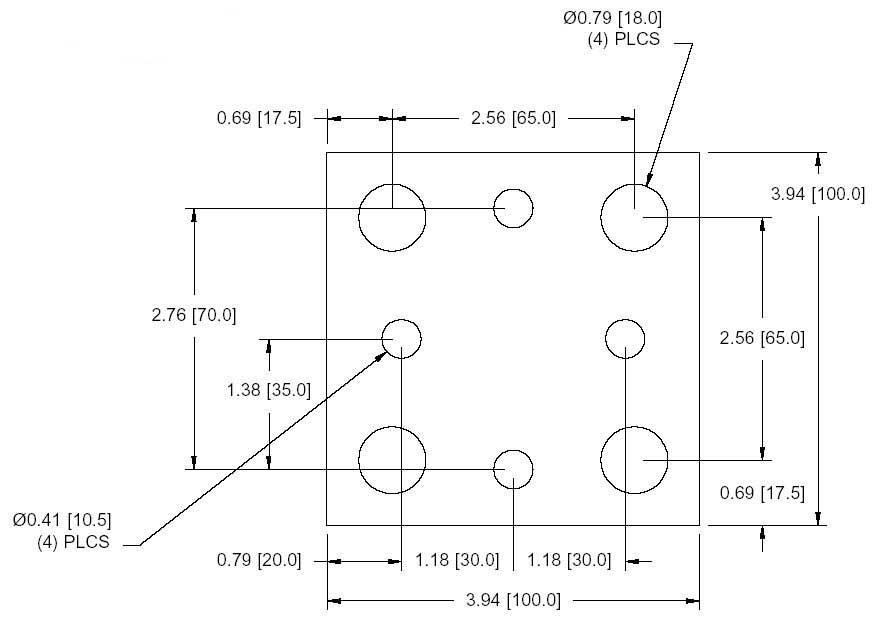

DSCP035 Series Shim Drawing


View PDF Catalog Page

DSCP035 Series Individual Spacers

Part Number Thickness Other Part Numbers STEP Download
DSCP035-M025 0.25mm DSCP035-M025.step
DSCP035-M050 0.50mm DSCP035-M050.step
DSCP035-M100 1.00 DSCP035-M100.step
DSCP035-M200 2.00mm DSCP035-M200.step
DSCP035-M320 3.20mm ACS632 DSCP035-M320.step
DSCP035-M340 3.40mm ACS634 DSCP035-M340.step
DSCP035-M360 3.60mm ACS636 DSCP035-M360.step
DSCP035-M380 3.80mm ACS638 DSCP035-M380.step
DSCP035-M400 4.00mm ACS640 DSCP035-M400.step
DSCP035-M420 4.20mm ACS642 DSCP035-M420.step
DSCP035-M440 4.40mm ACS644 DSCP035-M440.step
DSCP035-M460 4.60mm ACS646 DSCP035-M460.step
DSCP035-M480 4.80mm ACS648 DSCP035-M480.step
DSCP035-M500 5.00mm ACS650 DSCP035-M500.step
DSCP035-M520 5.20mm ACS652 DSCP035-M520.step
DSCP035-M540 5.40mm ACS654 DSCP035-M540.step
DSCP035-M560 5.60mm ACS656 DSCP035-M560.step
DSCP035-M580 5.80mm ACS658 DSCP035-M580.step
DSCP035-M600 6.00mm ACS660 DSCP035-M600.step
DSCP035-M620 6.20mm ACS662 DSCP035-M620.step
DSCP035-M640 6.40mm ACS664 DSCP035-M640.step
DSCP035-M660 6.60mm ACS666 DSCP035-M660.step
DSCP035-M680 6.80mm ACS668 DSCP035-M680.step
DSCP035-M700 7.00mm ACS670 DSCP035-M700.step
