DSCP037 Series Spacers

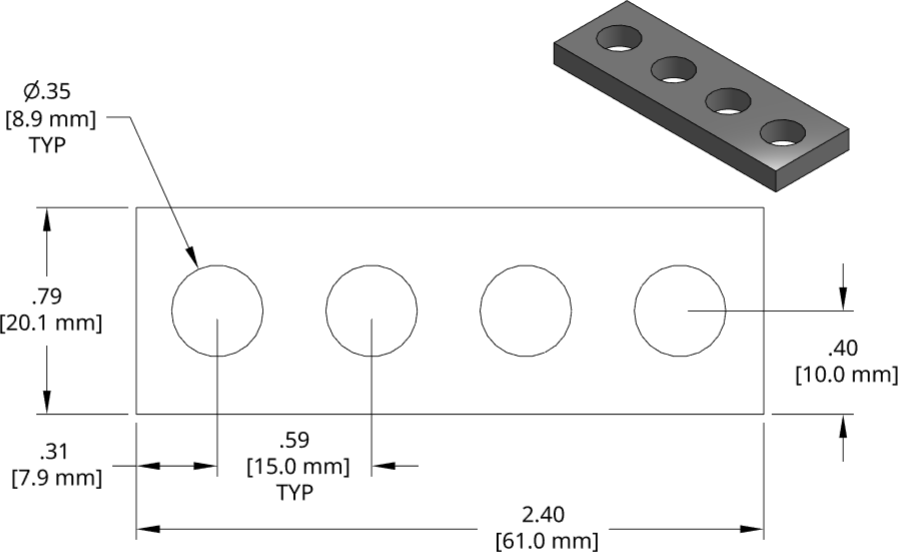

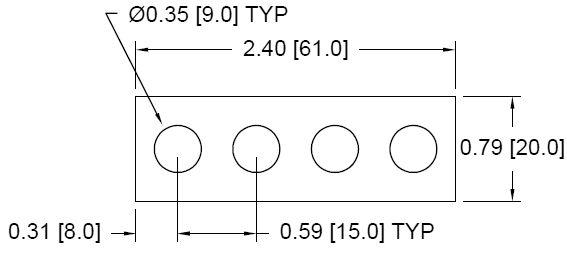

DSCP037 Series Shim Drawing


View PDF Catalog Page

DSCP037 Series Individual Spacers

Part Number Thickness Other Part Numbers STEP Download
DSCP037-M025 0.25mm DSCP037-M025.step
DSCP037-M050 0.50mm DSCP037-M050.step
DSCP037-M100 1.00mm DSCP037-M100.step
DSCP037-M200 2.00mm DSCP037-M200.step
DSCP037-M300 3.00mm ASP430N DSCP037-M300.step
DSCP037-M320 3.20mm ASP432N DSCP037-M320.step
DSCP037-M340 3.40mm ASP434N DSCP037-M340.step
DSCP037-M360 3.60mm ASP436N DSCP037-M360.step
DSCP037-M380 3.80mm ASP438N DSCP037-M380.step
DSCP037-M400 4.00mm ASP440N DSCP037-M400.step
DSCP037-M420 4.20mm ASP442N DSCP037-M420.step
DSCP037-M440 4.40mm ASP444N DSCP037-M440.step
DSCP037-M460 4.60mm ASP446N DSCP037-M460.step
DSCP037-M480 4.80mm ASP448N DSCP037-M480.step
DSCP037-M500 5.00mm ASP450N DSCP037-M500.step
DSCP037-M520 5.20mm ASP452N DSCP037-M520.step
DSCP037-M540 5.40mm ASP454N DSCP037-M540.step
DSCP037-M560 5.60mm ASP456N DSCP037-M560.step
DSCP037-M580 5.80mm ASP458N DSCP037-M580.step
DSCP037-M600 6.00mm ASP460N DSCP037-M600.step
DSCP037-M620 6.20mm ASP462N DSCP037-M620.step
DSCP037-M640 6.40mm ASP464N DSCP037-M640.step
DSCP037-M660 6.60mm ASP466N DSCP037-M660.step
DSCP037-M680 6.80mm ASP468N DSCP037-M680.step
DSCP037-M700 7.00mm ASP470N DSCP037-M700.step
