DSCP043 Series Spacers

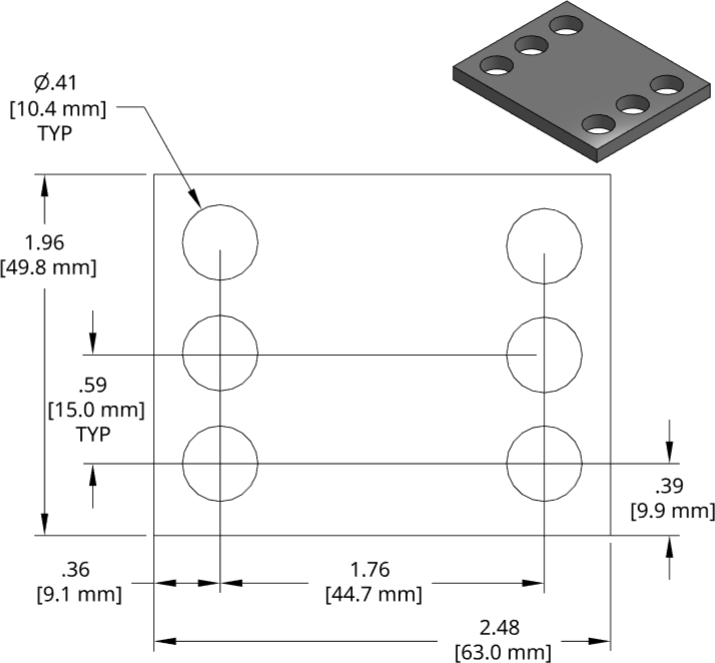

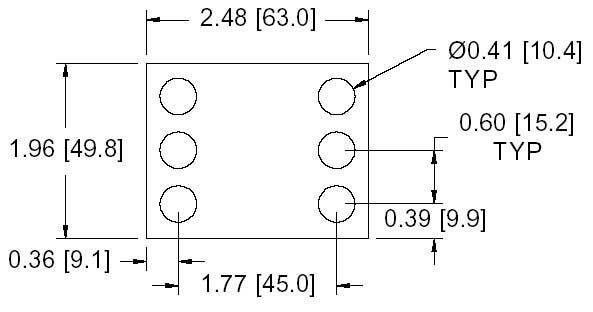

DSCP043 Series Shim Drawing


View PDF Catalog Page

DSCP043 Series Individual Spacers

Part Number Thickness Other Part Numbers
DSCP043-M400 4.00mm 56ZF28466-01
DSCP043-M425 4.25mm 56ZF28466-02
DSCP043-M450 4.50mm 56ZF28466-03
DSCP043-M475 4.75mm 56ZF28466-04
DSCP043-M500 5.00mm 56ZF28466-05
DSCP043-M525 5.25mm 56ZF28466-06
DSCP043-M550 5.50mm 56ZF28466-07
DSCP043-M575 5.75mm 56ZF28466-08
DSCP043-M600 6.00mm 56ZF28466-09
DSCP043-M625 6.25mm 56ZF28466-10
DSCP043-M650 6.50mm 56ZF28466-11
DSCP043-M675 6.75mm 56ZF28466-12
DSCP043-M700 7.00mm 56ZF28466-13
DSCP043-M725 7.25mm 56ZF28466-14
DSCP043-M750 7.50mm 56ZF28466-15
DSCP043-M775 7.75mm 56ZF28466-16
DSCP043-M800 8.00mm 56ZF28466-17
