DSCP045 Series Spacers

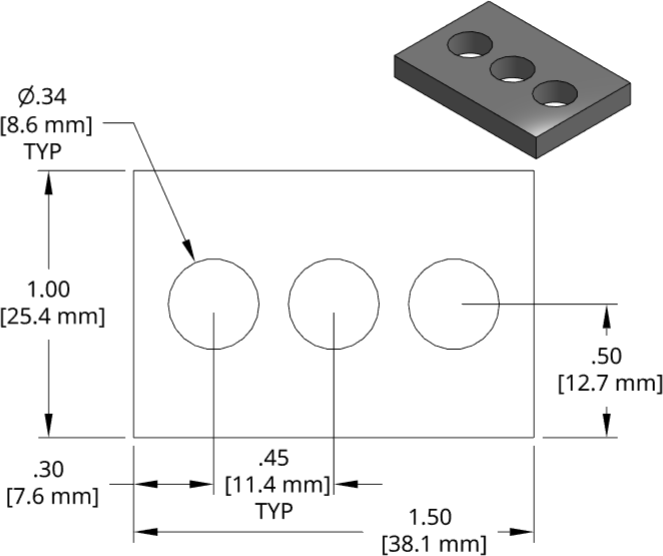

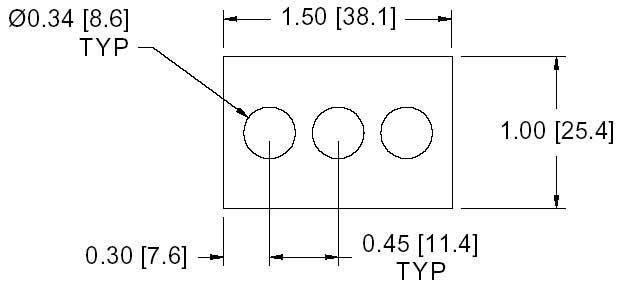

DSCP045 Series Shim Drawing


View PDF Catalog Page

DSCP045 Series Individual Spacers

Part Number Thickness Other Part Numbers STEP Download
DSCP045-M400 4.00mm 56ZF27464-01 DSCP045-M400.step
DSCP045-M425 4.25mm 56ZF27464-02 DSCP045-M425.step
DSCP045-M450 4.50mm 56ZF27464-03 DSCP045-M450.step
DSCP045-M475 4.75mm 56ZF27464-04 DSCP045-M475.step
DSCP045-M500 5.00mm 56ZF27464-05 DSCP045-M500.step
DSCP045-M525 5.25mm 56ZF27464-06 DSCP045-M525.step
DSCP045-M550 5.50mm 56ZF27464-07 DSCP045-M550.step
DSCP045-M575 5.75mm 56ZF27464-08 DSCP045-M575.step
DSCP045-M600 6.00mm 56ZF27464-09 DSCP045-M600.step
DSCP045-M625 6.25mm 56ZF27464-10 DSCP045-M625.step
DSCP045-M650 6.50mm 56ZF27464-11 DSCP045-M650.step
DSCP045-M675 6.75mm 56ZF27464-12 DSCP045-M675.step
DSCP045-M700 7.00mm 56ZF27464-13 DSCP045-M700.step
DSCP045-M725 7.25mm 56ZF27464-14 DSCP045-M725.step
DSCP045-M750 7.50mm 56ZF27464-15 DSCP045-M750.step
DSCP045-M775 7.75mm 56ZF27464-16 DSCP045-M775.step
DSCP045-M800 8.00mm 56ZF27464-17 DSCP045-M800.step
