DSCP046 Series Spacers

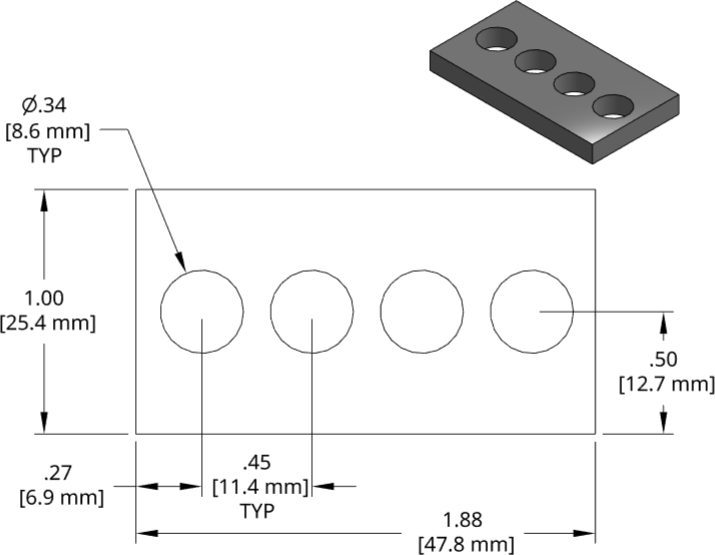

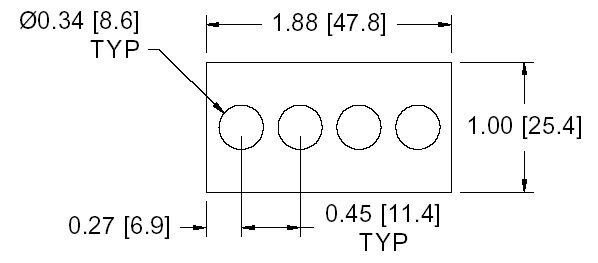

DSCP046 Series Shim Drawing


View PDF Catalog Page

DSCP046 Series Individual Spacers

Part Number Thickness Other Part Numbers STEP Download
DSCP046-M400 4.00mm 56ZF27462-01 DSCP046-M400.step
DSCP046-M425 4.25mm 56ZF27462-02 DSCP046-M425.step
DSCP046-M450 4.50mm 56ZF27462-03 DSCP046-M450.step
DSCP046-M475 4.75mm 56ZF27462-04 DSCP046-M475.step
DSCP046-M500 5.00mm 56ZF27462-05 DSCP046-M500.step
DSCP046-M525 5.25mm 56ZF27462-06 DSCP046-M525.step
DSCP046-M550 5.50mm 56ZF27462-07 DSCP046-M550.step
DSCP046-M575 5.75mm 56ZF27462-08 DSCP046-M575.step
DSCP046-M600 6.00mm 56ZF27462-09 DSCP046-M600.step
DSCP046-M625 6.25mm 56ZF27462-10 DSCP046-M625.step
DSCP046-M650 6.50mm 56ZF27462-11 DSCP046-M650.step
DSCP046-M675 6.75mm 56ZF27462-12 DSCP046-M675.step
DSCP046-M700 7.00mm 56ZF27462-13 DSCP046-M700.step
DSCP046-M725 7.25mm 56ZF27462-14 DSCP046-M725.step
DSCP046-M750 7.50mm 56ZF27462-15 DSCP046-M750.step
DSCP046-M775 7.75mm 56ZF27462-16 DSCP046-M775.step
DSCP046-M800 8.00mm 56ZF27462-17 DSCP046-M800.step
