DSCP047 Series Spacers

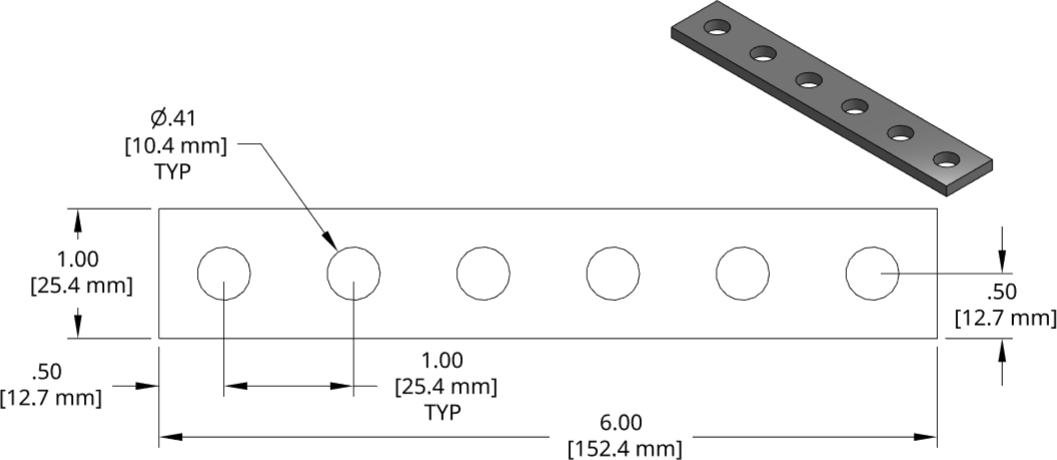

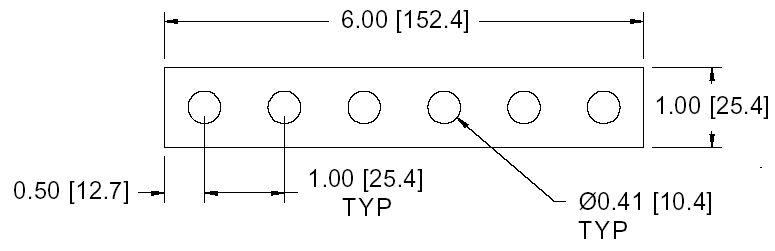

DSCP047 Series Shim Drawing


View PDF Catalog Page

DSCP047 Series Individual Spacers

Part Number Thickness Other Part Numbers STEP Download
DSCP047-M400 4.00mm 56ZF27461-01 DSCP047-M400.step
DSCP047-M425 4.25mm 56ZF27461-02 DSCP047-M425.step
DSCP047-M450 4.50mm 56ZF27461-03 DSCP047-M450.step
DSCP047-M475 4.75mm 56ZF27461-04 DSCP047-M475.step
DSCP047-M500 5.00mm 56ZF27461-05 DSCP047-M500.step
DSCP047-M525 5.25mm 56ZF27461-06 DSCP047-M525.step
DSCP047-M550 5.50mm 56ZF27461-07 DSCP047-M550.step
DSCP047-M575 5.75mm 56ZF27461-08 DSCP047-M575.step
DSCP047-M600 6.00mm 56ZF27461-09 DSCP047-M600.step
DSCP047-M625 6.25mm 56ZF27461-10 DSCP047-M625.step
DSCP047-M650 6.50mm 56ZF27461-11 DSCP047-M650.step
DSCP047-M675 6.75mm 56ZF27461-12 DSCP047-M675.step
DSCP047-M700 7.00mm 56ZF27461-13 DSCP047-M700.step
DSCP047-M725 7.25mm 56ZF27461-14 DSCP047-M725.step
DSCP047-M750 7.50mm 56ZF27461-15 DSCP047-M750.step
DSCP047-M775 7.75mm 56ZF27461-16 DSCP047-M775.step
DSCP047-M800 8.00mm 56ZF27461-17 DSCP047-M800.step
