DSCP051 Series Spacers

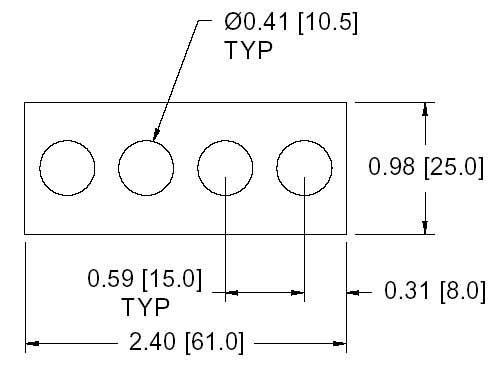

DSCP051 Series Shim Drawing


View PDF Catalog Page

DSCP051 Series Individual Spacers

Part Number Thickness Other Part Numbers STEP Download
DSCP051-M025 0.25mm ASP402 DSCP051-M025.step
DSCP051-M050 0.50mm ASP405 DSCP051-M050.step
DSCP051-M100 1.00mm ASP410 DSCP051-M100.step
DSCP051-M200 2.00mm ASP420 DSCP051-M200.step
DSCP051-M300 3.00mm ASP430, FSD 41295-51, SP2-30, 41-502-2221, 56ZF28046-101 DSCP051-M300.step
DSCP051-M320 3.20mm ASP432, FSD 41295-52, SP2-32, 41-502-2222, 56ZF28046-102 DSCP051-M320.step
DSCP051-M340 3.40mm ASP434, FSD 41295-53, SP2-34, 41-502-2223, 56ZF28046-103 DSCP051-M340.step
DSCP051-M360 3.60mm ASP436, FSD 41295-54, SP2-36, 41-502-2224, 56ZF28046-104 DSCP051-M360.step
DSCP051-M380 3.80mm ASP438, FSD 41295-55, SP2-38, 41-502-2225, 56ZF28046-105 DSCP051-M380.step
DSCP051-M400 4.00mm ASP440, FSD 41295-56, SP2-40, 41-502-2226, 56ZF28046-106 DSCP051-M400.step
DSCP051-M420 4.20mm ASP442, FSD 41295-57, SP2-42, 41-502-2227, 56ZF28046-107 DSCP051-M420.step
DSCP051-M440 4.40mm ASP444, FSD 41295-58, SP2-44, 41-502-2228, 56ZF28046-108 DSCP051-M440.step
DSCP051-M460 4.60mm ASP446, FSD 41295-59, SP2-46, 41-502-2229, 56ZF28046-109 DSCP051-M460.step
DSCP051-M480 4.80mm ASP448, FSD 41295-60, SP2-48, 41-502-2230, 56ZF28046-110 DSCP051-M480.step
DSCP051-M500 5.00mm ASP450, FSD 41295-61, SP2-50, 41-502-2231, 56ZF28046-111 DSCP051-M500.step
DSCP051-M520 5.20mm ASP452, FSD 41295-62, SP2-52, 41-502-2232, 56ZF28046-112 DSCP051-M520.step
DSCP051-M540 5.40mm ASP454, FSD 41295-63, SP2-54, 41-502-2233, 56ZF28046-113 DSCP051-M540.step
DSCP051-M560 5.60mm ASP456, FSD 41295-64, SP2-56, 41-502-2234, 56ZF28046-114 DSCP051-M560.step
DSCP051-M580 5.80mm ASP458, FSD 41295-65, SP2-58, 41-502-2235, 56ZF28046-115 DSCP051-M580.step
DSCP051-M600 6.00mm ASP460, FSD 41295-66, SP2-60, 41-502-2236, 56ZF28046-116 DSCP051-M600.step
DSCP051-M620 6.20mm ASP462, FSD 41295-67, SP2-62, 41-502-2237, 56ZF28046-117 DSCP051-M620.step
DSCP051-M640 6.40mm ASP464, FSD 41295-68, SP2-64, 41-502-2238, 56ZF28046-118 DSCP051-M640.step
DSCP051-M660 6.60mm ASP466, FSD 41295-69, SP2-66, 41-502-2239, 56ZF28046-119 DSCP051-M660.step
DSCP051-M680 6.80mm ASP468, FSD 41295-70, SP2-68, 41-502-2240, 56ZF28046-120 DSCP051-M680.step
DSCP051-M700 7.00mm ASP470, FSD 41295-71, SP2-70, 41-502-2241, 56ZF28046-121 DSCP051-M700.step
