DSCP092 Series Spacers

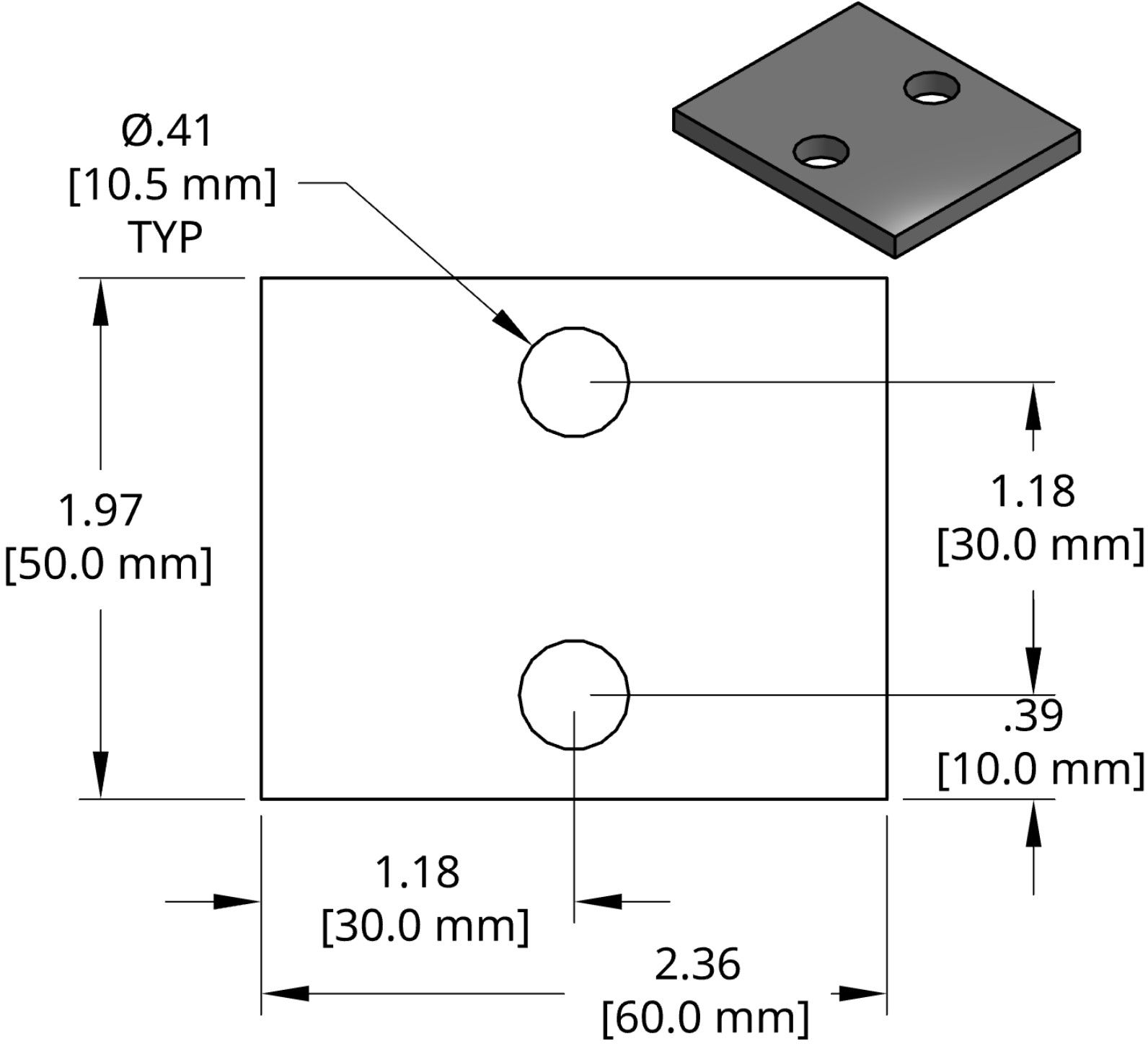

DSCP092 Series Shim Drawing


View PDF Catalog Page

DSCP092 Series Individual Spacers

Part Number Thickness Other Part Numbers STEP Download
DSCP092-M025 0.25mm ASP202 DSCP092-M025.step
DSCP092-M050 0.50mm ASP205 DSCP092-M050.step
DSCP092-M100 1.00mm ASP210 DSCP092-M100.step
DSCP092-M200 2.00mm ASP220 DSCP092-M200.step
DSCP092-M300 3.00mm ASP230 DSCP092-M300.step
DSCP092-M320 3.20mm ASP232 DSCP092-M320.step
DSCP092-M340 3.40mm ASP234 DSCP092-M340.step
DSCP092-M360 3.60mm ASP236 DSCP092-M360.step
DSCP092-M380 3.80mm ASP238 DSCP092-M380.step
DSCP092-M400 4.00mm ASP240 DSCP092-M400.step
DSCP092-M420 4.20mm ASP242 DSCP092-M420.step
DSCP092-M440 4.40mm ASP244 DSCP092-M440.step
DSCP092-M460 4.60mm ASP246 DSCP092-M460.step
DSCP092-M480 4.80mm ASP248 DSCP092-M480.step
DSCP092-M500 5.00mm ASP250 DSCP092-M500.step
DSCP092-M520 5.20mm ASP252 DSCP092-M520.step
DSCP092-M540 5.40mm ASP254 DSCP092-M540.step
DSCP092-M560 5.60mm ASP256 DSCP092-M560.step
DSCP092-M580 5.80mm ASP258 DSCP092-M580.step
DSCP092-M600 6.00mm ASP260 DSCP092-M600.step
DSCP092-M620 6.20mm ASP262 DSCP092-M620.step
DSCP092-M640 6.40mm ASP264 DSCP092-M640.step
DSCP092-M660 6.60mm ASP266 DSCP092-M660.step
DSCP092-M680 6.80mm ASP268 DSCP092-M680.step
DSCP092-M700 7.00mm ASP270 DSCP092-M700.step
