FSD 34498 Series Shims

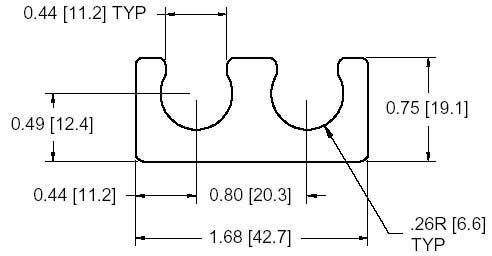

FSD 34498 Series Shim Drawing
View PDF Catalog Page

Part Number Thickness
FSD 34498-51 2.00mm
FSD 34498-52 1.00mm
FSD 34498-53 0.50mm
FSD 34498-54 0.25mm

FSD 34498 Series Shims

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
-FSD 34498 4.5mm Set 1 2 1 0
**FSD 34498 5.0mm Set 1 1 3 2
***FSD 34498 6.0mm Set 2 1 2 0
For Douglas Stamping part number options for this shim and sets, click here.
