FSD 39558 Series Shims

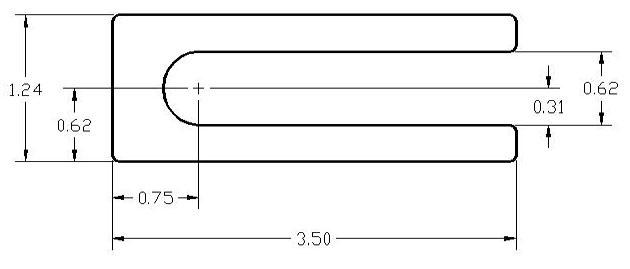

FSD 39558 Series Shim Drawing
View PDF Catalog Page

Part Number	Thickness
FSD 39558-51	2.00mm
FSD 39558-52	1.00mm
FSD 39558-53	0.50mm
FSD 39558-54	0.25mm

FSD 39558 Shim Set Stackups

Set Number	Stackup	2.00mm	1.00mm	0.50mm	0.25mm
-FSD 39558	4.5mm Set	1	2	1	0
**FSD 39558	5.0mm Set	1	1	3	2
***FSD 39558	6.0mm Set	2	1	2	0
