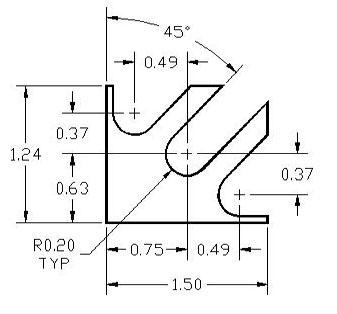

FSD 40800 Individual Shim Drawing
View PDF Catalog Page

FSD 40800 Series Individual Shims

Part Number	Thickness
FSD 40800-54	0.25mm
FSD 40800-53	0.50mm
FSD 40800-52	1.00mm
FSD 40800-51	2.00mm

FSD 40800 Series Shim Set Stackups

Set Number	Stackup	2.00mm	1.00mm	0.50mm	0.25mm
-FSD 40800	4.5mm Set	1	2	1	0
**FSD 40800	5.0mm Set	1	1	3	2
***FSD 40800	6.0mm Set	2	1	2	0
