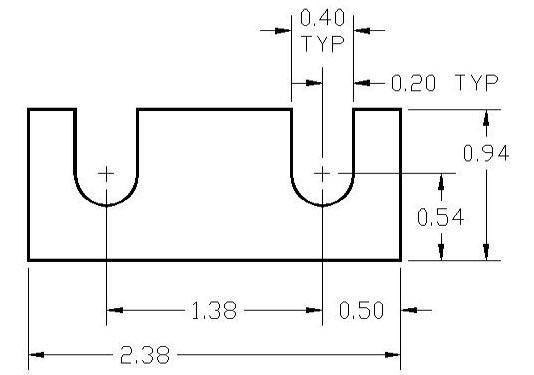

FSD 40801 Individual Shim Drawing
View PDF Catalog Page

FSD 40801 Series Individual Shims

Part Number Thickness
FSD 40801-54 0.25mm
FSD 40801-53 0.50mm
FSD 40801-52 1.00mm
FSD 40801-51 2.00mm

FSD 40801 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
-FSD 40801 4.5mm Set 1 2 1 0
**FSD 40801 5.0mm Set 1 1 3 2
***FSD 40801 6.0mm Set 2 1 2 0
