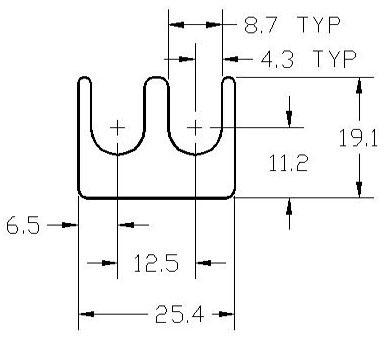

FSD 40828 Individual Shim Drawing
View PDF Catalog Page

FSD 40828 Series Individual Shims

Part Number Thickness
FSD 40828-50 0.25mm
FSD 40828-51 0.50mm
FSD 40828-52 1.00mm
FSD 40828-53 2.00mm

FSD 40828 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
-FSD 40828 4.5mm Set 1 2 1 0
**FSD 40828 5.0mm Set 1 1 3 2
***FSD 40828 6.0mm Set 2 1 2 0
