FSD 40892 Series Shims

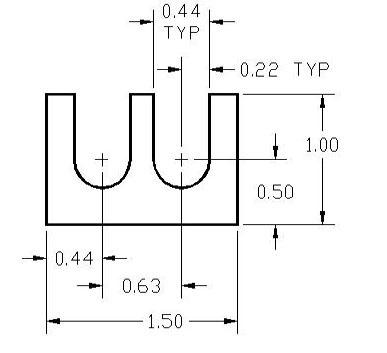

FSD 40892 Series Shim Drawing
View PDF Catalog Page

FSD 40892 Series Individual Shims

Part Number Thickness
FSD 40892-54 0.25mm
FSD 40892-53 0.50mm
FSD 40892-52 1.00mm
FSD 40892-51 2.00mm

FSD 40892 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
-FSD 40892 4.5mm Set 1 2 1 0
**FSD 40892 5.0mm Set 1 1 3 2
***FSD 40892 6.0mm Set 2 1 2 0
