56ZF28683 Series Shims

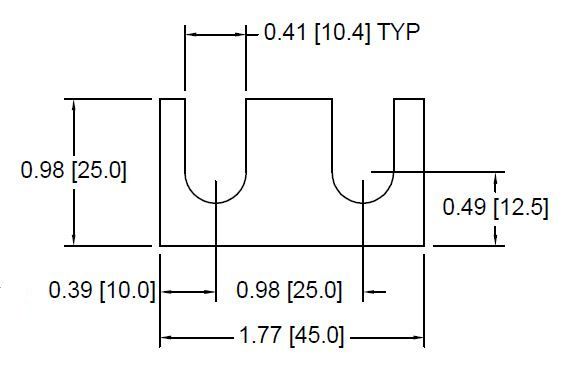

56ZF28683 Series Shim Drawing
View PDF Catalog Page

56ZF28683 Series Individual Shims

Part Number Thickness Douglas Part Number
56ZF28683-0 0.25mm DSCH041-M025
56ZF28683-1 0.50mm DSCH041-M050
56ZF28683-2 1.00mm DSCH041-M100
56ZF28683-3 2.00mm DSCH041-M200

56ZF28683 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
-56ZF28683 4.5mm Set 1 2 1 0
*56ZF28683 5.0mm Set 1 2 2 0
%56ZF28683 5.0mm Set 1 2 1 2
**56ZF28683 5.0mm Set 1 1 3 2
***56ZF28683 6.0mm Set 2 1 2 0
