CSS 512 Shims

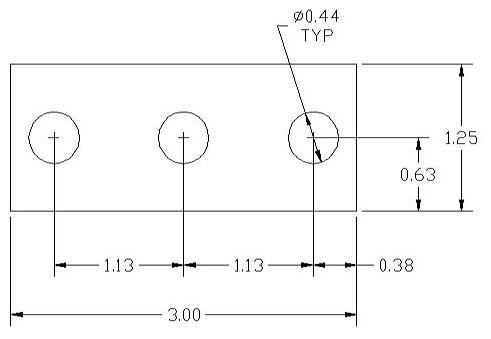

CSS 512 Shim Drawing
View PDF Catalog Page

CSS 512 Series Individual Shims

Part Number	Thickness	DSC Part No's
CSS 512-3	0.015 inch	DSCH096-E015
CSS 512-2	0.031 inch	DSCH096-E032
CSS 512-1	0.062 inch	DSCH096-E062

CSS Series Shim Set Stackups

Set Number	Stackup	0.062 inch	0.031 inch	0.015 inch	DSC Set Number
42-530-2850	.150 Inch Set	1	2	2	DSCH096-E155
