DSCH031 Series Shims

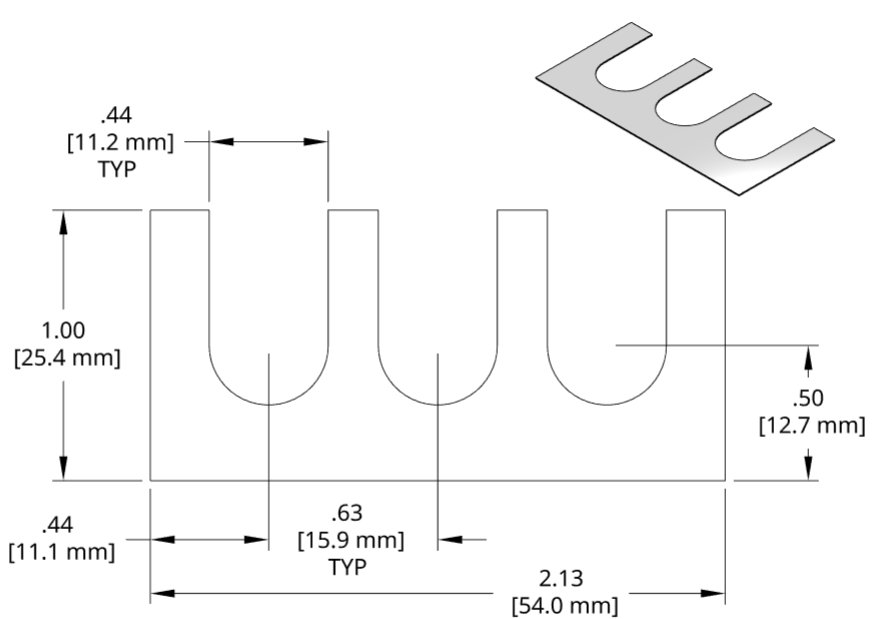

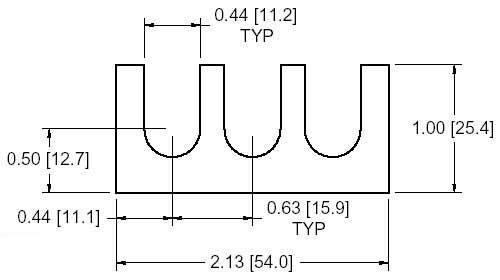

DSCH031 Series Shim Drawing


View PDF Catalog Page

DSCH031 Series Individual Shims

Part Number Thickness Legacy Part No's
DSCH031-M025 0.25mm FSD 40893-54
DSCH031-M050 0.50mm FSD 40893-53
DSCH031-M100 1.00mm FSD 40893-52
DSCH031-M200 2.00mm FSD 40893-51

DSCH031 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
DSCH031-M454 4.5mm Set 1 2 1 0
DSCH031-M505 5.0mm Set 1 2 2 0
DSCH031-M506 5.0mm Set 1 2 1 2
DSCH031-M507 5.0mm Set 1 1 3 2
DSCH031-M605 6.0mm Set 2 1 2 0
