DSCP025 Series Spacers

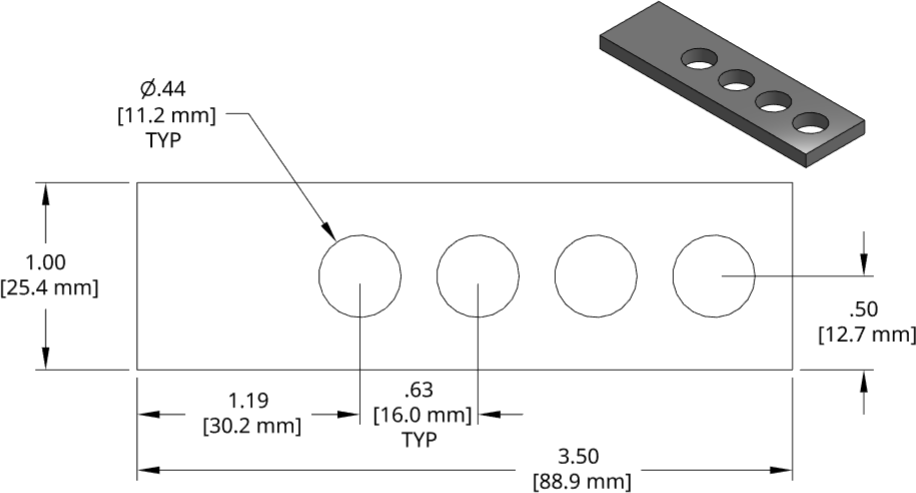

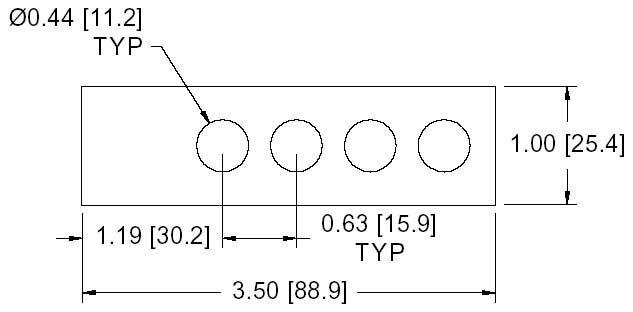

DSCP025 Series Shim Drawing


View PDF Catalog Page

DSCP025 Series Individual Spacers

Stock Code Thickness Other Part Numbers STEP Download
DSCP025-M200 2.00mm FSD 40877-01 DSCP025-M200.step
DSCP025-M225 2.25mm FSD 40877-02 DSCP025-M225.step
DSCP025-M250 2.50mm FSD 40877-03 DSCP025-M250.step
DSCP025-M275 2.75mm FSD 40877-04 DSCP025-M275.step
DSCP025-M300 3.00mm FSD 40877-05 DSCP025-M300.step
DSCP025-M325 3.25mm FSD 40877-06 DSCP025-M325.step
DSCP025-M350 3.50mm FSD 40877-07 DSCP025-M350.step
DSCP025-M375 3.75mm FSD 40877-08 DSCP025-M375.step
DSCP025-M400 4.00mm FSD 40877-09 DSCP025-M400.step
DSCP025-M425 4.25mm FSD 40877-10 DSCP025-M425.step
DSCP025-M450 4.50mm FSD 40877-11 DSCP025-M450.step
DSCP025-M475 4.75mm FSD 40877-12 DSCP025-M475.step
DSCP025-M500 5.00mm FSD 40877-13 DSCP025-M500.step
DSCP025-M525 5.25mm FSD 40877-14 DSCP025-M525.step
DSCP025-M550 5.50mm FSD 40877-15 DSCP025-M550.step
DSCP025-M575 5.75mm FSD 40877-16 DSCP025-M575.step
DSCP025-M600 6.00mm FSD 40877-17 DSCP025-M600.step
