DSCP029 Series Spacers

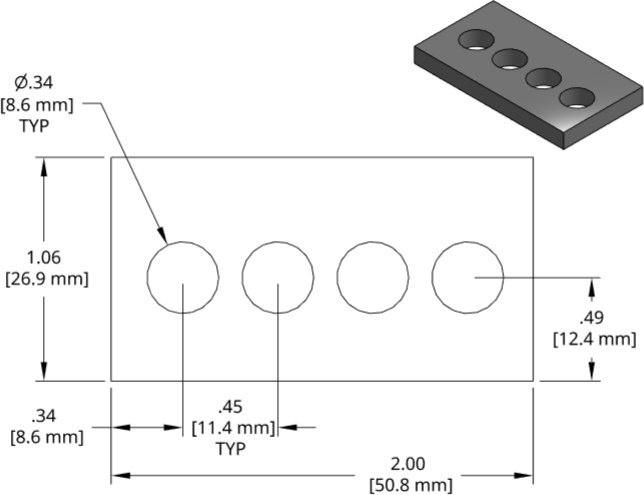

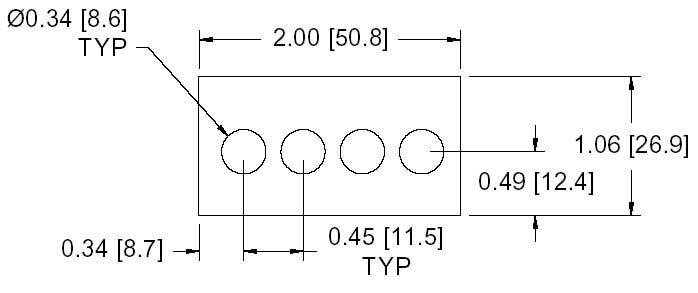

DSCP029 Series Shim Drawing


View PDF Catalog Page

DSCP029 Series Individual Spacers

Part Number Thickness Other Part Numbers
DSCP029-M050 0.50mm 41-502-1921, SAS 42751-05
DSCP029-M100 1.00mm 41-502-1922, SAS 42751-10
DSCP029-M150 1.50mm 41-502-1923, SAS 42751-15
DSCP029-M200 2.00mm 41-502-1924, SAS 42751-20
DSCP029-M250 2.50mm 41-502-1925, SAS 42751-25
DSCP029-M300 3.00mm 41-502-1926, SAS 42751-30
DSCP029-M350 3.50mm 41-502-1927, SAS 42751-35
DSCP029-M400 4.00mm 41-502-1928, SAS 42751-40
DSCP029-M450 4.50mm 41-502-1929, SAS 42751-45
DSCP029-M500 5.00mm 41-502-1930, SAS 42751-50
DSCP029-M550 5.50mm 41-502-1931, SAS 42751-55
DSCP029-M600 6.00mm 41-502-1932, SAS 42751-60
DSCP029-M650 6.50mm 41-502-1933, SAS 42751-65
DSCP029-M700 7.00mm 41-502-1934, SAS 42751-70
DSCP029-M750 7.50mm 41-502-1935, SAS 42751-75
DSCP029-M800 8.00mm 41-502-1936, SAS 42751-80
