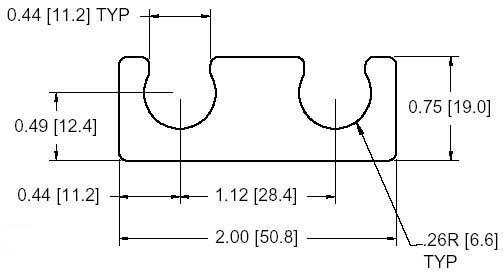

DSCH008 Series Shims
View PDF Catalog Page
DSCH008 Series Individual Shims
| Stock Code | Thickness | Legacy Stock Codes | STEP Download |
|---|---|---|---|
| DSCH008-M025 | 0.25mm | FSD 34499-54 | DSCH008-M025.step |
| DSCH008-M050 | 0.50mm | FSD 34499-53 | DSCH008-M050.step |
| DSCH008-M100 | 1.00mm | FSD 34499-52 | DSCH008-M100.step |
| DSCH008-M200 | 2.00mm | FSD 34499-51 | DSCH008-M200.step |
| DSCH008-E015 | .015 inch | FSD 14051-54 | DSCH008-E015.step |
| DSCH008-E032 | .032 inch | FSD 14051-52 | DSCH008-E032.step |
| DSCH008-E062 | .062 inch | FSD 14051-51 | DSCH008-E062.step |
DSCH008 Series Shim Set Stackups
| Set Number | Stackup | 2.00mm | 1.00mm | 0.50mm | 0.25mm |
|---|---|---|---|---|---|
| DSCH008-M305 | 3.0mm Set | 0 | 2 | 1 | 2 |
| DSCH008-M454 | 4.5mm Set | 1 | 2 | 1 | 0 |
| DSCH008-M505 | 5.0mm Set | 1 | 2 | 2 | 0 |
| DSCH008-M506 | 5.0mm Set | 1 | 2 | 1 | 2 |
| DSCH008-M507 | 5.0mm Set | 1 | 1 | 3 | 2 |
| DSCH008-M605 | 6.0mm Set | 2 | 1 | 2 | 0 |
| DSCH008-M706 | 7.0mm Set | 2 | 2 | 2 | 0 |
DSCH008 Inch Shim Set Stackups
| Set Number | Stackup | .062 inch | .031 inch |
|---|---|---|---|
| DSCH008-E255 | .250 inch Set | 3 | 2 |
