DSCH015 Series Shims

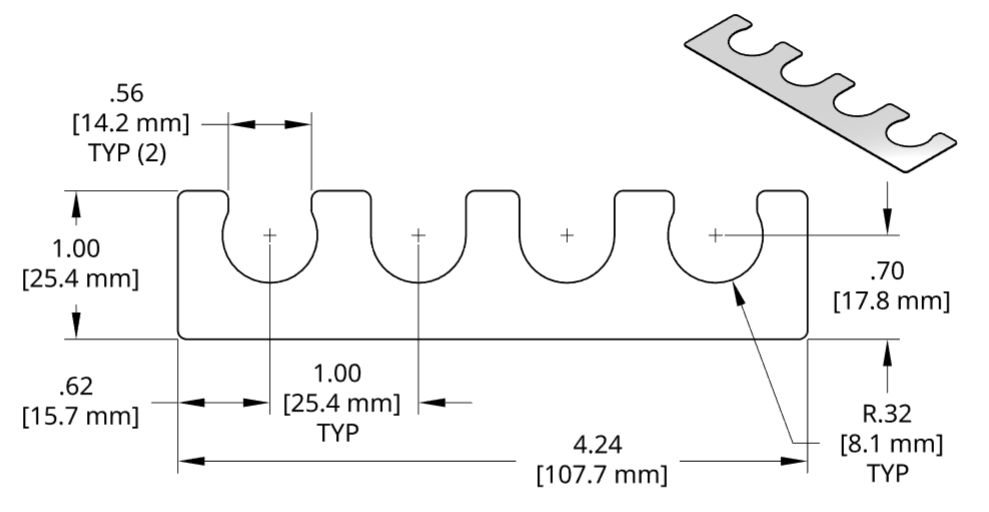

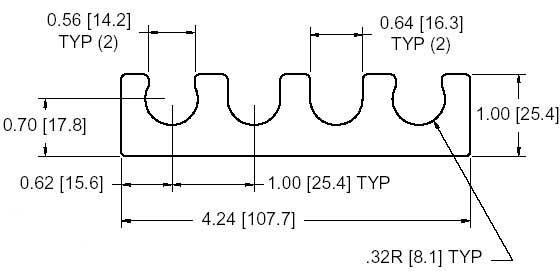

DSCH015 Series Shim Drawing


View PDF Catalog Page

DSCH015 Series Individual Shims

Stock Code Thickness Legacy Stock Codes STEP Download
DSCH015-M025 0.25mm FSD 34506-54 DSCH015-M025.step
DSCH015-M050 0.50mm FSD 34506-53 DSCH015-M050.step
DSCH015-M100 1.00mm FSD 34506-52 DSCH015-M100.step
DSCH015-M200 2.00mm FSD 34506-51 DSCH015-M200.step
DSCH015-E015 .015 inch FSD 14202-54 DSCH015-E015.step
DSCH015-E032 .032 inch FSD 14202-52 DSCH015-E032.step
DSCH015-E062 .062 inch FSD 14202-51 DSCH015-E062.step

DSCH015 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
DSCH015-M305 3.0mm Set 0 2 1 2
DSCH015-M454 4.5mm Set 1 2 1 0
DSCH015-M505 5.0mm Set 1 2 2 0
DSCH015-M506 5.0mm Set 1 2 1 2
DSCH015-M507 5.0mm Set 1 1 3 2
DSCH015-M605 6.0mm Set 2 1 2 0
DSCH015-M706 7.0mm Set 2 2 2 0

DSCH015 Inch Shim Set Stackups

Set Number Stackup .062 inch .031 inch
DSCH015-E255 .250 inch Set 3 2
