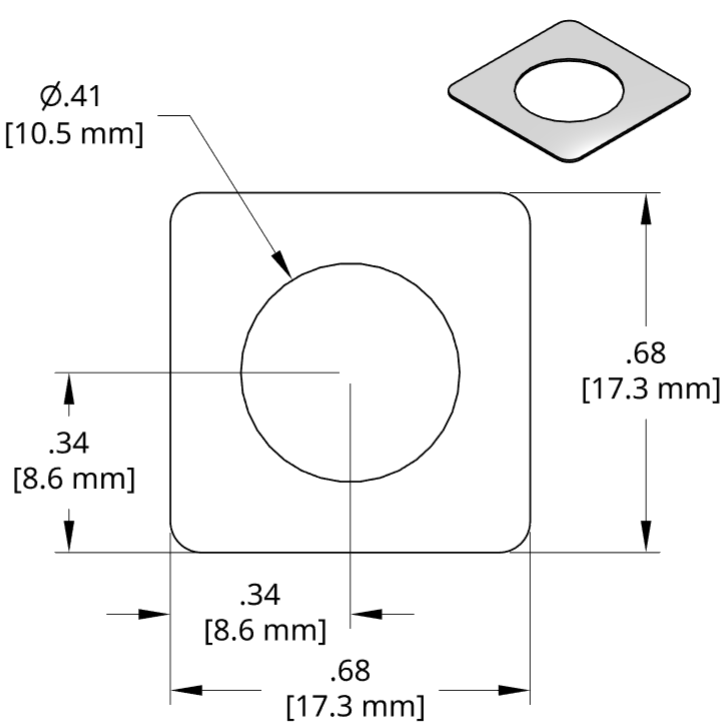

DSCH034 Series Shims
View PDF Catalog Page
DSCH034 Series Individual Shims
| Stock Code | Thickness | Legacy Stock Codes | STEP Download |
|---|---|---|---|
| DSCH034-M025 | 0.25mm | FSD 41256-51 | DSCH034-M025.step |
| DSCH034-M050 | 0.50mm | FSD 41256-52 | DSCH034-M050.step |
| DSCH034-M100 | 1.00mm | FSD 41256-53 | DSCH034-M100.step |
| DSCH034-M200 | 2.00mm | FSD 41256-54 | DSCH034-M200.step |
| DSCH034-E015 | .015 inch | DSCH034-E015.step | |
| DSCH034-E032 | .032 inch | DSCH034-E032.step | |
| DSCH034-E062 | .062 inch | DSCH034-E062.step |
DSCH034 Series Shim Set Stackups
| Set Number | Stackup | 2.00mm | 1.00mm | 0.50mm | 0.25mm |
|---|---|---|---|---|---|
| DSCH001-M305 | 3.0mm Set | 0 | 2 | 1 | 2 |
| DSCH034-M454 | 4.5mm Set | 1 | 2 | 1 | 0 |
| DSCH034-M505 | 5.0mm Set | 1 | 2 | 2 | 0 |
| DSCH034-M506 | 5.0mm Set | 1 | 2 | 1 | 2 |
| DSCH034-M507 | 5.0mm Set | 1 | 1 | 3 | 2 |
| DSCH034-M605 | 6.0mm Set | 2 | 1 | 2 | 0 |
| DSCH034-M706 | 7.0mm Set | 2 | 2 | 2 | 0 |
DSCH034 Inch Shim Set Stackups
| Set Number | Stackup | .062 inch | .031 inch |
|---|---|---|---|
| DSCH034-E255 | .250 inch Set | 3 | 2 |
