DSCH047 Series Shims

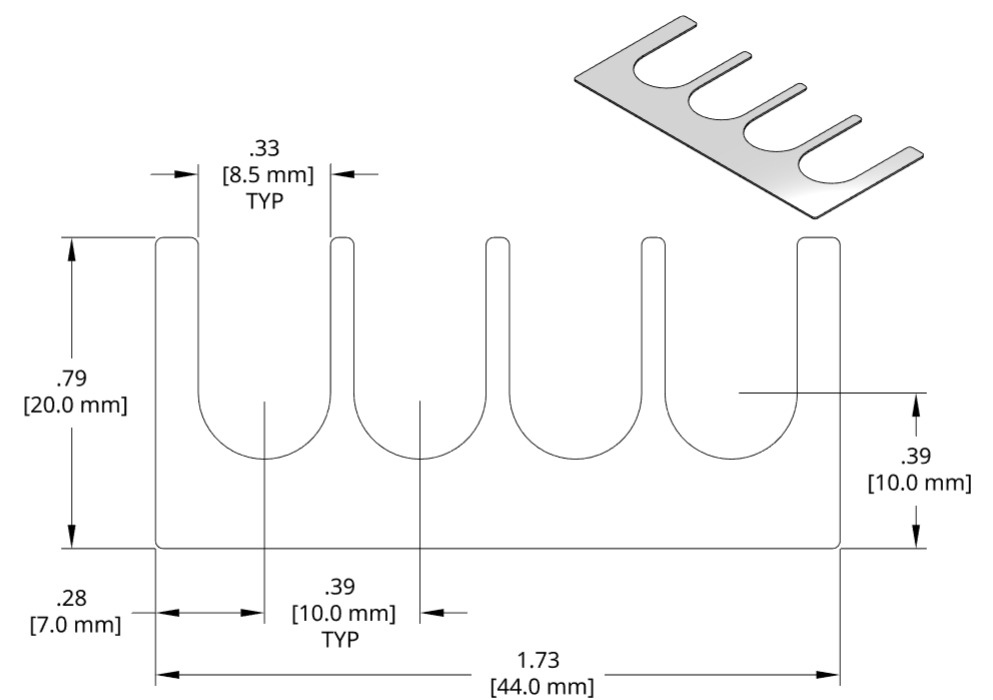

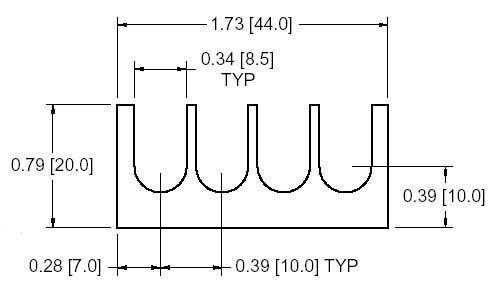

DSCH047 Series Shim Drawing
View PDF Catalog Page

DSCH047 Series Individual Shims

Part Number Thickness Legacy Part No's
DSCH047-M025 0.25mm ASH402S
DSCH047-M050 0.50mm ASH405S
DSCH047-M100 1.00mm ASH410S
DSCH047-M200 2.00mm ASH420S

DSCH047 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
DSCH047-M454 4.5mm Set 1 2 1 0
DSCH047-M505 5.0mm Set 1 2 2 0
DSCH047-M506 5.0mm Set 1 2 1 2
DSCH047-M507 5.0mm Set 1 1 3 2
DSCH047-M605 6.0mm Set 2 1 2 0
