DSCH060 Series Shims

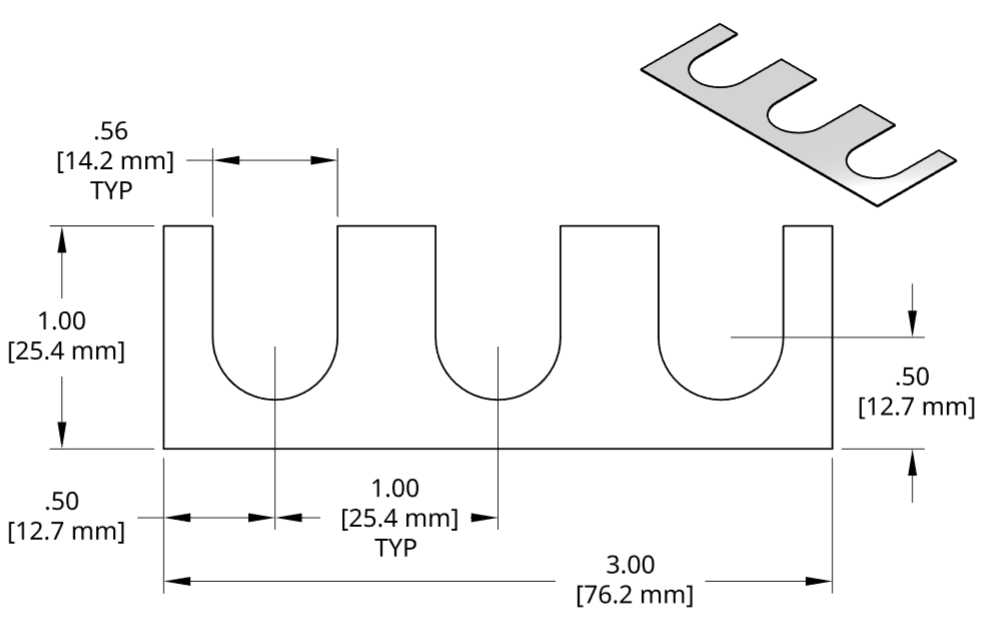

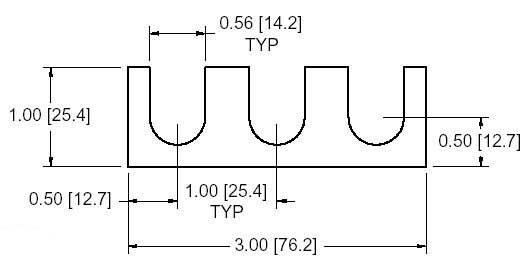

DSCH060 Series Shim Drawing


View PDF Catalog Page

DSCH060 Series Individual Shims

Stock Code Thickness Legacy Stock Codes STEP Download
DSCH060-M025 0.25mm GSD-F-25 DSCH060-M025.step
DSCH060-M050 0.50mm GSD-F-50 DSCH060-M050.step
DSCH060-M100 1.00mm GSD-F-100 DSCH060-M100.step
DSCH060-M200 2.00mm GSD-F-200 DSCH060-M200.step
DSCH060-E015 .015 inch DSCH060-E015.step
DSCH060-E032 .032 inch DSCH060-E032.step
DSCH060-E062 .062 inch DSCH060-E062.step

DSCH060 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
DSCH060-M305 3.0mm Set 0 2 1 2
DSCH060-M454 4.5mm Set 1 2 1 0
DSCH060-M503 5.0mm Set 2 1 0 0
DSCH060-M505 5.0mm Set 1 2 2 0
DSCH060-M506 5.0mm Set 1 2 1 2
DSCH060-M507 5.0mm Set 1 1 3 2
DSCH060-M605 6.0mm Set 2 1 2 0
DSCH060-M706 7.0mm Set 2 2 2 0

DSCH060 Inch Shim Set Stackups

Set Number Stackup .062 inch .031 inch
DSCH060-E255 .250 inch Set 3 2
