DSCH062 Series Shims

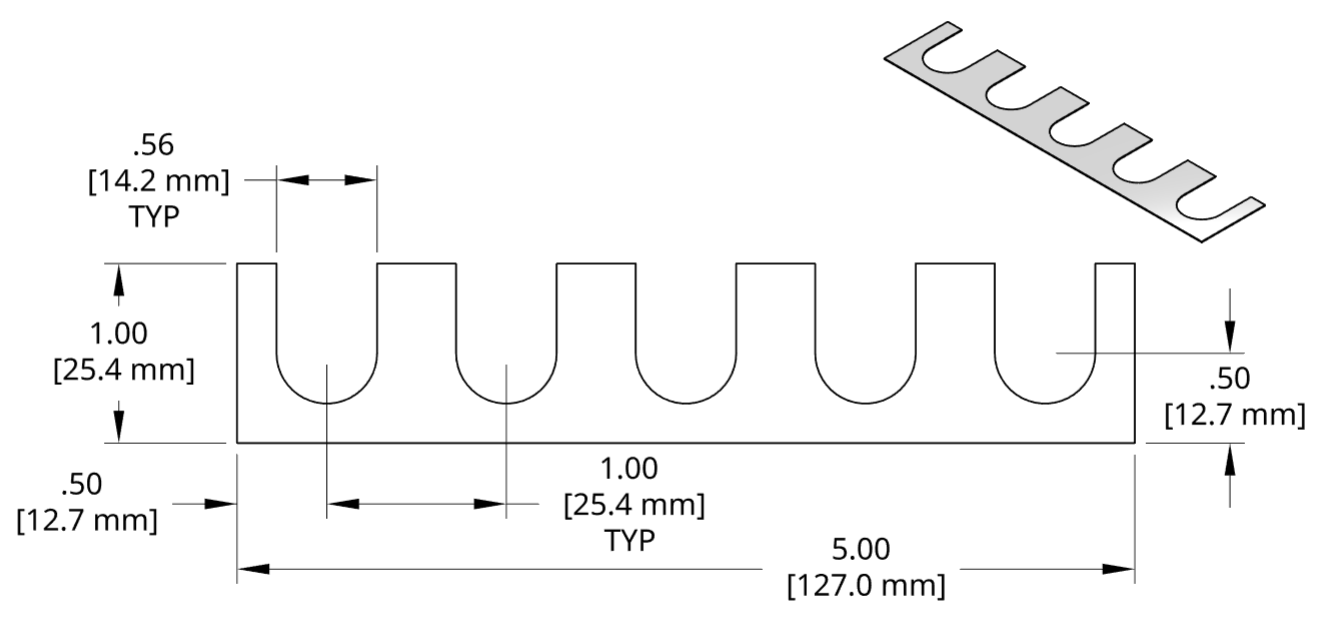

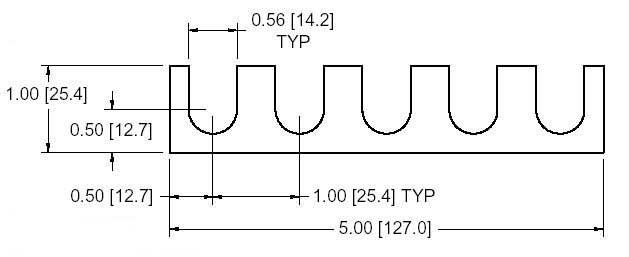

DSCH062 Series Shim Drawing


View PDF Catalog Page

DSCH062 Series Individual Shims

Stock Code Thickness Legacy Stock Codes STEP Download
DSCH062-M025 0.25mm GSD-H-25 DSCH062-M025.step
DSCH062-M050 0.50mm GSD-H-50 DSCH062-M050.step
DSCH062-M100 1.00mm GSD-H-100 DSCH062-M100.step
DSCH062-M200 2.00mm GSD-H-200 DSCH062-M200.step
DSCH062-E015 .015 inch DSCH062-E015.step
DSCH062-E032 .032 inch DSCH062-E032.step
DSCH062-E062 .062 inch DSCH062-E062.step

DSCH062 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
DSCH062-M305 3.0mm Set 0 2 1 2
DSCH062-M454 4.5mm Set 1 2 1 0
DSCH062-M503 5.0mm Set 2 1 0 0
DSCH062-M505 5.0mm Set 1 2 2 0
DSCH062-M506 5.0mm Set 1 2 1 2
DSCH062-M507 5.0mm Set 1 1 3 2
DSCH062-M605 6.0mm Set 2 1 2 0
DSCH062-M706 7.0mm Set 2 2 2 0

DSCH062 Inch Shim Set Stackups

Set Number Stackup .062 inch .031 inch
DSCH062-E255 .250 inch Set 3 2
