DSCH090 Series Shims

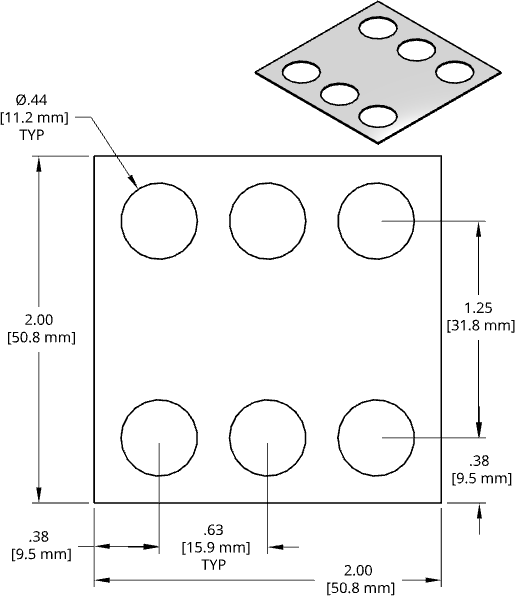

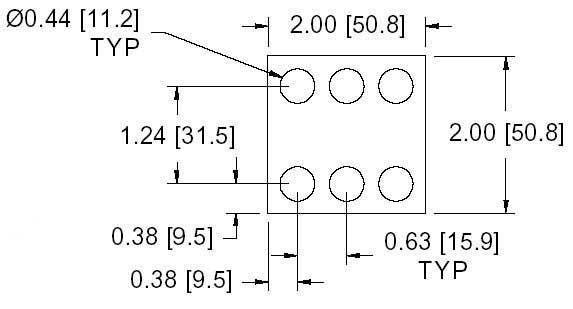

DSCH090 Series Shim Drawing


View PDF Catalog Page

DSCH090 Series Individual Shims

Part Number Thickness Legacy Part No's
DSCH090-E015 .015 inch CSS 88-3
DSCH090-E032 .031 inch CSS 88-1
DSCH090-E062 .062 inch CSS 88-2

DSCH090 Inch Shim Set Stackups

Set Number Stackup .062 inch .031 inch .015 inch
DSCH090-E155 .150 inch set 1 2 2
