DSCH106 Series Shims

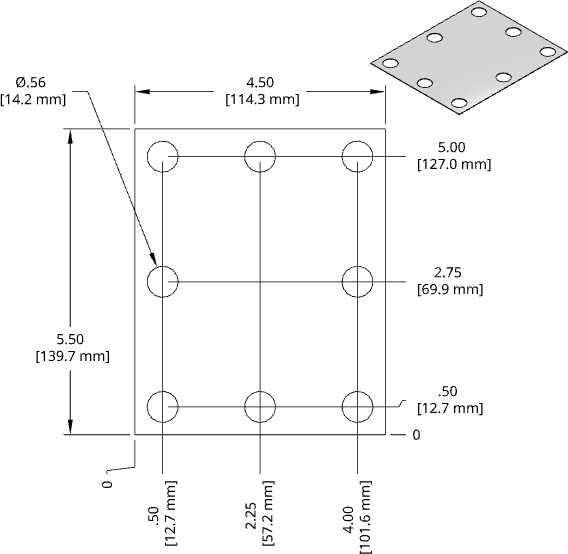

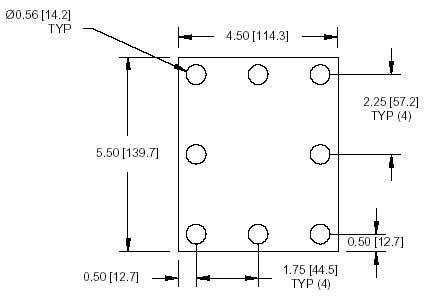

DSCH106 Series Shim Drawing


View PDF Catalog Page

DSCH106 Series Individual Shims

Stock Code Thickness Legacy Stock Codes STEP Download
DSCH106-M025 0.25mm DSCH106-M025.step
DSCH106-M050 0.50mm DSCH106-M050.step
DSCH106-M100 1.00mm DSCH106-M100.step
DSCH106-M200 2.00mm DSCH106-M200.step
DSCH106-E015 .015 inch CSS 1822-3 DSCH106-E015.step
DSCH106-E032 .031 inch CSS 1822-1 DSCH106-E032.step
DSCH106-E062 .062 inch CSS 1822-2 DSCH106-E062.step

DSCH106 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
DSCH106-M305 3.0mm Set 0 2 1 2
DSCH106-M454 4.5mm Set 1 2 1 0
DSCH106-M505 5.0mm Set 1 2 2 0
DSCH106-M506 5.0mm Set 1 2 1 2
DSCH106-M507 5.0mm Set 1 1 3 2
DSCH106-M605 6.0mm Set 2 1 2 0
DSCH106-M706 7.0mm Set 2 2 2 0

DSCH106 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
DSCH106-M454 4.5mm Set 1 2 1 0
DSCH106-M505 5.0mm Set 1 2 2 0
DSCH106-M506 5.0mm Set 1 2 1 2
DSCH106-M507 5.0mm Set 1 1 3 2
DSCH106-M605 6.0mm Set 2 1 2 0

DSCH106 Inch Shim Set Stackups

Set Number Stackup .062 inch .031 inch .015 inch
DSCH106-E155 .150 inch set 1 2 2
