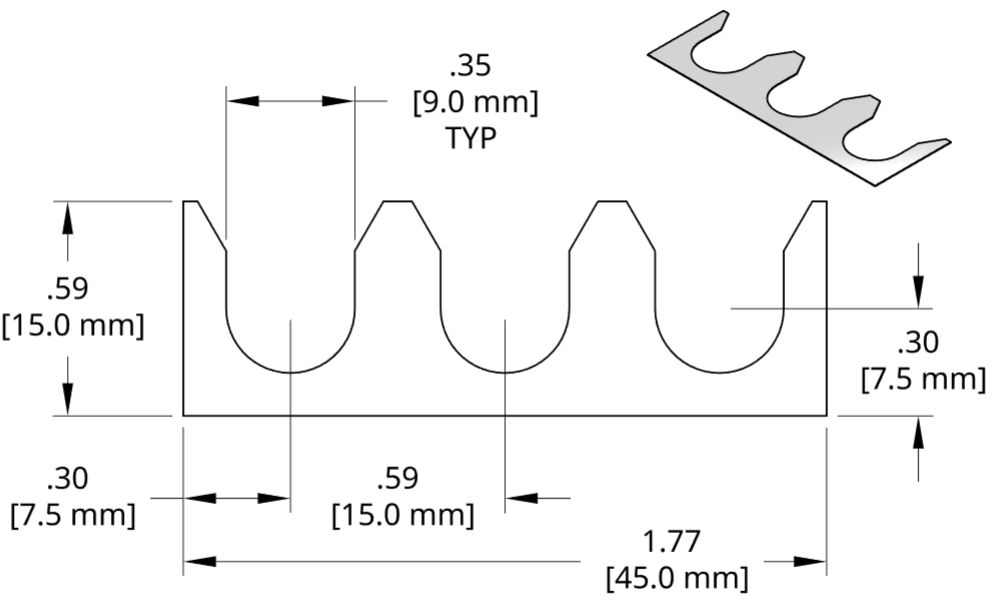

DSCH124 Series Shims
View PDF Catalog Page
DSCH124 Series Individual Shims
| Stock Code | Thickness | Legacy Stock Codes | STEP Download |
|---|---|---|---|
| DSCH124-M010 | 0.10mm | 3 193 192 | DSCH124-M010.step |
| DSCH124-M020 | 0.20mm | DSCH124-M020.step | |
| DSCH124-M025 | 0.25mm | DSCH124-M025.step | |
| DSCH124-M050 | 0.50mm | 3 193 193 | DSCH124-M050.step |
| DSCH124-M100 | 1.00mm | 3 193 194 | DSCH124-M100.step |
| DSCH124-M200 | 2.00mm | 3 193 195 | DSCH124-M200.step |
| DSCH124-M500 | 5.00 mm | DSCH124-M500.step |
DSCH124 Series Shim Set Stackups
| Set Number | Stackup | 2.00mm | 1.00mm | 0.50mm | 0.25mm |
|---|---|---|---|---|---|
| DSCH124-M305 | 3.0mm set | 0 | 2 | 1 | 2 |
| DSCH124-M454 | 4.0mm set | 1 | 2 | 1 | 0 |
| DSCH124-M505 | 5.0mm set | 1 | 2 | 2 | 0 |
| DSCH124-M506 | 5.0mm set | 1 | 2 | 1 | 2 |
| DSCH124-M507 | 5.0mm set | 1 | 1 | 3 | 2 |
| DSCH124-M605 | 6.0mm set | 2 | 1 | 2 | 0 |
| DSCH124-M706 | 7.0mm set | 2 | 2 | 2 | 0 |
