DSCH137 Series Shims

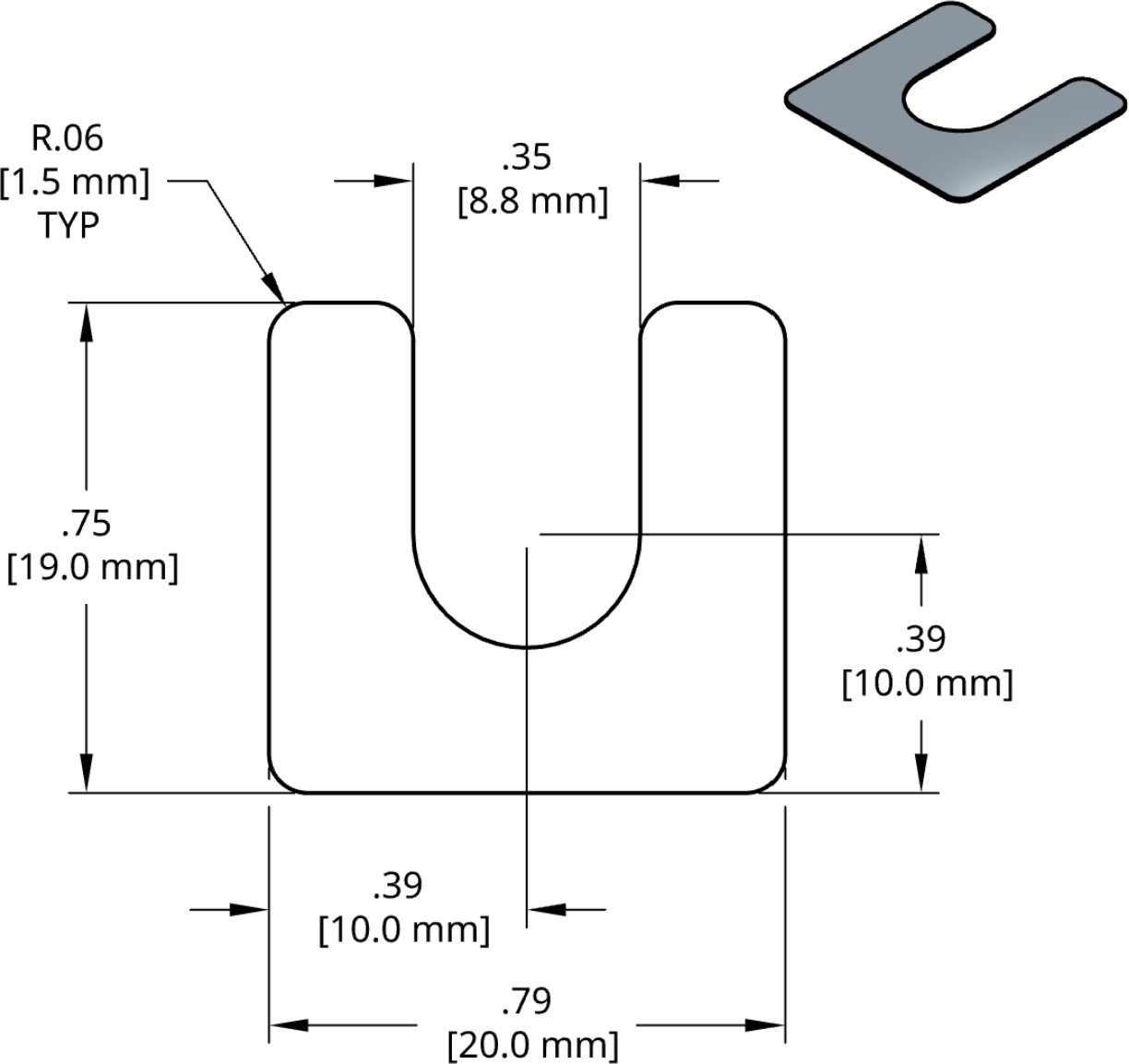

DSCH137 Series Shim Drawing


View PDF Catalog Page

DSCH137 Series Individual Shims

Stock Code Thickness STEP Download
DSCH137-M025 0.25mm DSCH137-M025.step
DSCH137-M050 0.50mm DSCH137-M050.step
DSCH137-M100 1.00mm DSCH137-M100.step
DSCH137-M200 2.00mm DSCH137-M200.step

DSCH137 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
DSCH137-M305 3.0mm set 0 2 1 2
DSCH137-M454 4.0mm set 1 2 1 0
DSCH137-M505 5.0mm set 1 2 2 0
DSCH137-M506 5.0mm set 1 2 1 2
DSCH137-M507 5.0mm set 1 1 3 2
DSCH137-M605 6.0mm set 2 1 2 0
DSCH137-M706 7.0mm set 2 2 2 0
