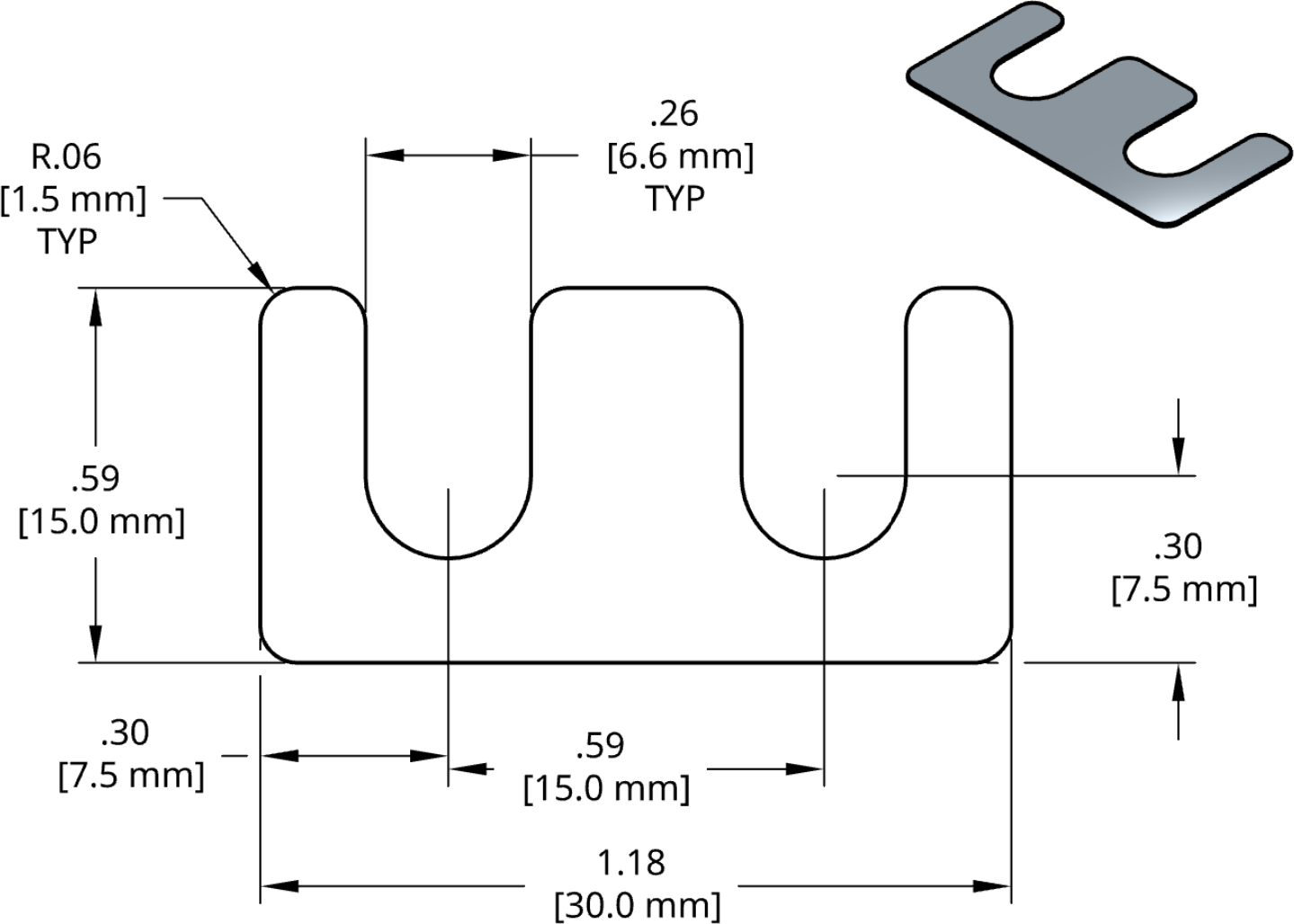

DSCH138 Series Shims
View PDF Catalog Page
DSCH138 Series Individual Shims
| Stock Code | Thickness | STEP Download |
|---|---|---|
| DSCH138-M025 | 0.25mm | DSCH138-M025.step |
| DSCH138-M050 | 0.50mm | DSCH138-M050.step |
| DSCH138-M100 | 1.00mm | DSCH138-M100.step |
| DSCH138-M200 | 2.00mm | DSCH138-M200.step |
DSCH138 Series Shim Set Stackups
| Set Number | Stackup | 2.00mm | 1.00mm | 0.50mm | 0.25mm |
|---|---|---|---|---|---|
| DSCH138-M305 | 3.0mm set | 0 | 2 | 1 | 2 |
| DSCH138-M454 | 4.0mm set | 1 | 2 | 1 | 0 |
| DSCH138-M505 | 5.0mm set | 1 | 2 | 2 | 0 |
| DSCH138-M506 | 5.0mm set | 1 | 2 | 1 | 2 |
| DSCH138-M507 | 5.0mm set | 1 | 1 | 3 | 2 |
| DSCH138-M605 | 6.0mm set | 2 | 1 | 2 | 0 |
| DSCH138-M706 | 7.0mm set | 2 | 2 | 2 | 0 |
