DSCP004 Series Spacers

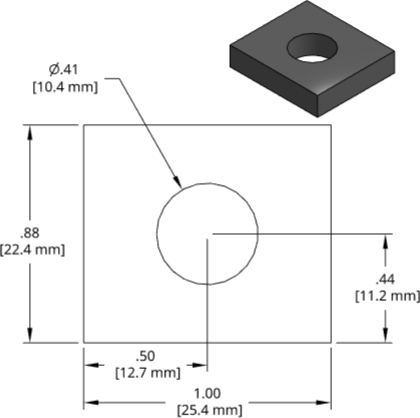

DSCP004 Series Shim Drawing


View PDF Catalog Page

DSCP004 Series Individual Spacers

Part Number Thickness Other Part Numbers
DSCP004-M200 2.00mm FSD 40221-51
DSCP004-M225 2.25mm FSD 40221-52
DSCP004-M250 2.50mm FSD 40221-53
DSCP004-M275 2.75mm FSD 40221-54
DSCP004-M300 3.00mm FSD 40221-55
DSCP004-M325 3.25mm FSD 40221-56
DSCP004-M350 3.50mm FSD 40221-57
DSCP004-M375 3.75mm FSD 40221-58
DSCP004-M400 4.00mm FSD 40221-59
DSCP004-M425 4.25mm FSD 40221-60
DSCP004-M450 4.50mm FSD 40221-61
DSCP004-M475 4.75mm FSD 40221-62
DSCP004-M500 5.00mm FSD 40221-63
DSCP004-M525 5.25mm FSD 40221-64
DSCP004-M550 5.50mm FSD 40221-65
DSCP004-M575 5.75mm FSD 40221-66
DSCP004-M600 6.00mm FSD 40221-67
