DSCP005 Series Spacers

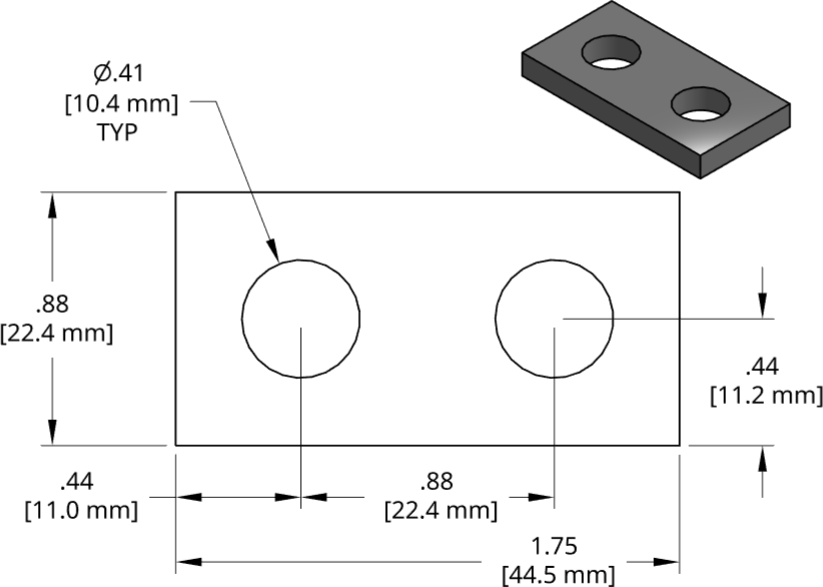

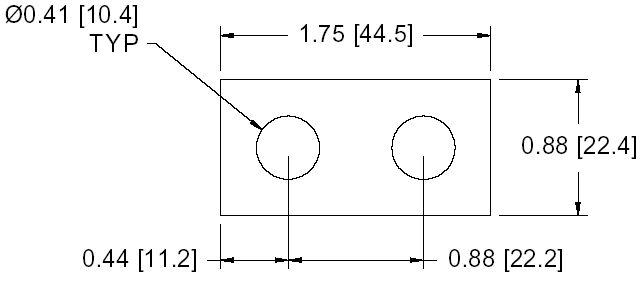

DSCP005 Series Shim Drawing


View PDF Catalog Page

DSCP005 Series Individual Spacers

Part Number Thickness Other Part Numbers
DSCP005-M200 2.00mm FSD 40222-51
DSCP005-M225 2.25mm FSD 40222-52
DSCP005-M250 2.50mm FSD 40222-53
DSCP005-M275 2.75mm FSD 40222-54
DSCP005-M300 3.00mm FSD 40222-55
DSCP005-M325 3.25mm FSD 40222-56
DSCP005-M350 3.50mm FSD 40222-57
DSCP005-M375 3.75mm FSD 40222-58
DSCP005-M400 4.00mm FSD 40222-59
DSCP005-M425 4.25mm FSD 40222-60
DSCP005-M450 4.50mm FSD 40222-61
DSCP005-M475 4.75mm FSD 40222-62
DSCP005-M500 5.00mm FSD 40222-63
DSCP005-M525 5.25mm FSD 40222-64
DSCP005-M550 5.50mm FSD 40222-65
DSCP005-M575 5.75mm FSD 40222-66
DSCP005-M600 6.00mm FSD 40222-67
